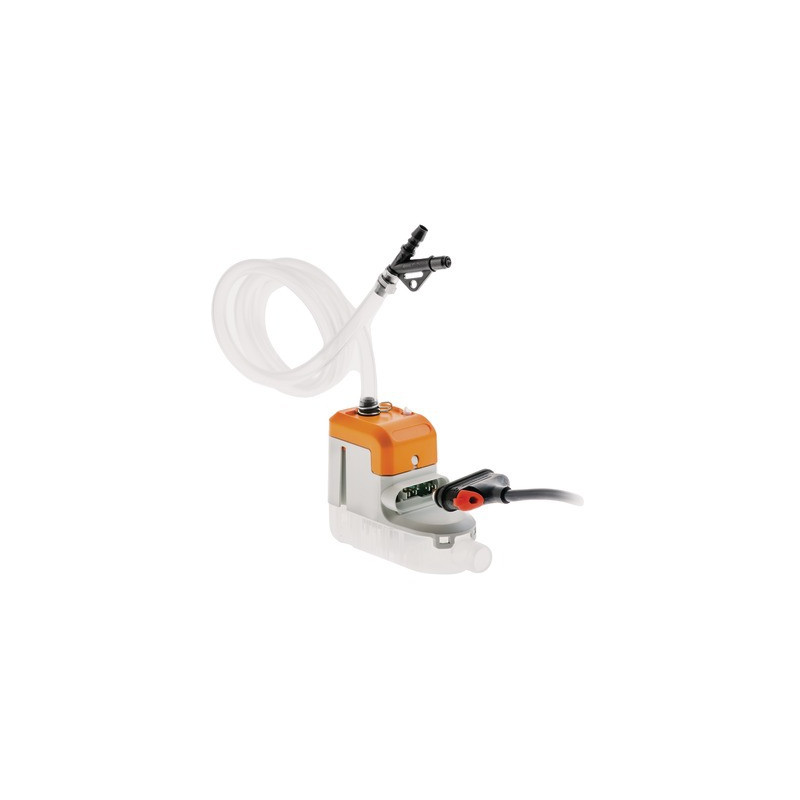

Si-10 multi-purpose pump with dsd- SAUERMANN - SI10CE03UN23
SI10CE03UN23/SR
€127.48
Delivery expected from 2026-09-29
Delivery & returns
- ✓ Free delivery on orders over €79 in France
- ✓ Free returns within 30 days
This comprehensive kit is designed for wall-mounted air conditioning units. It enables quick and easy installation of a pump inside a bend.
The benefits of this installation kit:
- Easy to install on any surface
- Aesthetic set
- Quiet operation: 22 dB(A)
The kit contains:
- SI-10 UNIVERS'L monoblock piston pump - Clear PVC tube internal Ø 6 mm, 1 m long, fitted with insulating foam over a length of 800 mm
- Two-part bend (base and cover).
- Ceiling penetration (covering the hole in the suspended ceiling).
- Bend/Trunk and Bend /Split connectors (rubber).
- 500 mm flexible hose – int. Ø 15 mm (connection to split).
- Vent pipe
- 6 screws and wall plugs for fixing trunking and bend.
- 2 clamp collars.
- Trunk dimensions (LxWxH): 750 x 80 x 60 mm, white.
Characteristics:
- Operating cycle: 100% continuous operation
- Protection rating: IPX4 double insulation
- Safety contact: NC 8 A resistive - 250 V
- Detection system: Built-in, with floats
- Thermal protection (overheating): 115 °C (automatic restart)
- Detection level: On = 18 mm, Off = 13 mm, Safety contact = 21 mm
- Noise level at 1 m below 22 dB(A) in accordance with EN ISO 3744
Safety information:
To protect yourself against electrical hazards, ensure that the unit power supply is switched off before performing any work. If in doubt, do not risk installing it incorrectly: Seek advice from a qualified professional, such as an electrician.
Features of product: SI-10 MULTI-PURPOSE PUMP WITH DSD- SAUERMANN - SI10CE03UN23
- Package Weight (kg)
- 0.49
- Package Height (m)
- 0.1
- Package Width (m)
- 0.16
- Package Length (m)
- 0.172
- Flow Rate (l/h)
- 20
- Decibels (dB(A))
- 22
- Specifications
- Hauteur refoulement max. 10m
- Logo Marque
- SAUERMANN
Sauermann Lift Pump: Ensuring Condensate Drainage
Modern installations (condensing boilers, heat pumps, air conditioners) produce condensates that must be drained continuously. A failure in drainage can cause overflow, safety lockouts, or moisture damage. When natural drainage is not possible, the lift pump ensures the transfer of condensates to the drainage system.
Sauermann pumps are developed to meet the needs of residential settings: compact design, consistent operation, integration into technical areas, and materials compatible with acidic condensates. The choice of pump primarily depends on expected flow rate, lift height, and installation type (wall-mounted, false ceiling, duct).
Key Components for Reliable Lifting
Depending on the configuration, several elements contribute to the reliability of drainage:
-
Pump / lift module: ensures condensate transfer with an appropriate flow rate and a manometric height consistent with the piping layout.
-
Level detection system: float or sensor, it activates the pump at the right time and minimizes the risk of overflow.
-
Check valve and fittings: reduce backflow and secure drainage, especially in vertical lifting applications.
How to Choose the Right Sauermann Pump?
Before selecting a model, identify the lift height, discharge length, type of device (boiler/heat pump/AC), and installation location. A properly sized pump limits unnecessary cycles, stabilizes drainage, and reduces noise.
Technical advice: check compatibility with acidic condensates, and size the lift height according to the highest point in the path, not just the horizontal distance.
