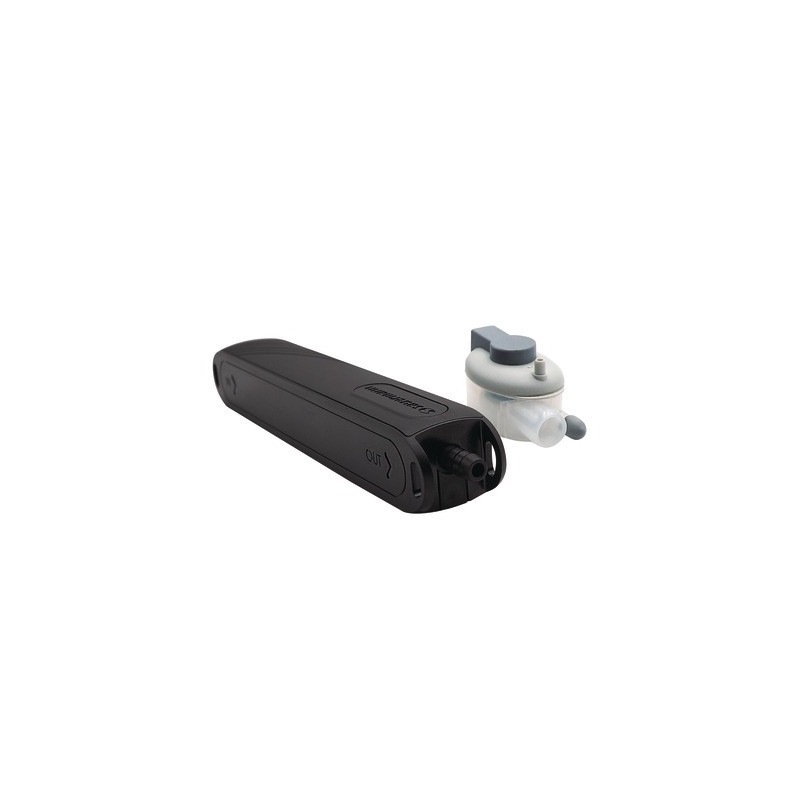

Condensate lift pump SI-20- SAUERMANN - SI20CE02UN23

For discreet installation inside the air conditioning unit.

Application:

-> Wall-mounted air conditioning unit up to 20 kW

Characteristics:

- Complete silence:

-> Record power-to-noise ratio of 19 dB(A).

-> Noise levels well below those of even the quietest air conditioning units.

-> Insulating foam on the tube supplied to reduce vibrations.

- Reliability and environmental sustainability:

-> Resistant to all types of environments.

-> Can drain condensate containing small particles.

-> Designed to replace most mini-pump models on the market.

-> Designed for easy dismantling to encourage the recycling of plastics and components.

- Easy installation:

-> The slimmest mini pump on the market (cross-section 27 × 27 mm).

-> Can be integrated into all air conditioning units on the market.

-> Can be inserted into ducts and secured to refrigeration pipes using four side attachments for clamp collars.

-> Connect and disconnect the detector with a single click on a remote socket to make installation and servicing easier.

-> Accessories supplied to simplify installation (fastenings, mounting plates, pre-fitted air vent, etc.)

- Exceptional power:

-> Record size-to-power ratio (maximum flow rate of 20 litres per hour), for air conditioning units up to 20 kW. Patented, highly efficient piston pump technology.

-Compliance with standards: CE, EAC, UKCA

Kit contents:

-> Piston pump with a 1.5 m power cable: 2 power supply wires, 2 wires for the safety contact.

-> 1 detector unit (SI2958, 1.5 m power cable).

-> Clear PVC tube, int. Ø 6 mm – L 60 mm, pre-fitted with a ‘Drain Safe Device’ connector.

-> PVC pipe int. Ø 6 mm – L 0.63 m, fitted with insulating foam.

-> Detector block installation kit: 90° bend, int. Ø 15 mm x L 152 mm, vent pipe int. Ø 4 mm x 75 mm, fastening rail, adhesive, 3 Rilsan collars 2.5 x 200 mm and 1 fastening kit.
