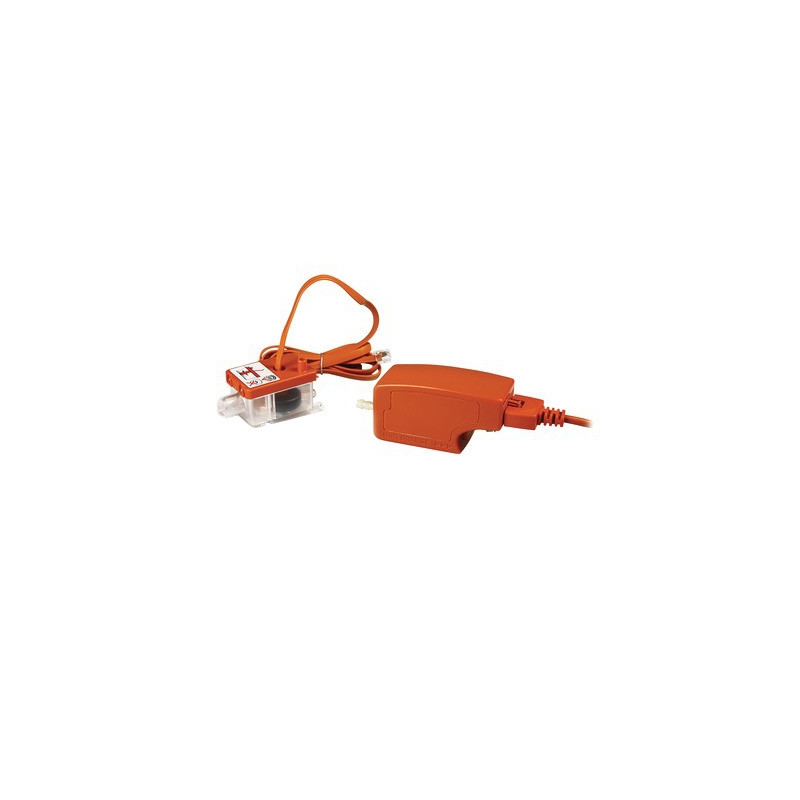

Orange mini pump- ASPEN - FP2212
FP2212/SA
€120.96
Colissimo
Delivery expected from 2026-09-24
Available
Delivery & returns
- ✓ Free delivery on orders over €79 in France
- ✓ Free returns within 30 days
Application:
- Air conditioning unit or ducted or ceiling-mounted – up to 16 kW
- Ultra quiet
- A second submersible tank is included
- Installation in the suspended ceiling, either in trunking or behind the evaporator
- Ideal for... small air conditioning units
Technical characteristics:
- Max. suction height: 2 m
- Operation: Discontinuous
- Max. water temperature: 40 °C
- Drain pipe: int. Ø 6 mm
- Thermal protection
- IP protection rating: IP21
- Fully waterproof housing
- Self-priming
Kit contents:
- Orange Mini Pump
- 1.5 m power supply cable
- Tank lid with 1.5 m sensor cable
- Submersible tank
- Air vent
- Float and filter
- 1.5 m suction hose, int. Ø 6 mm
- 220 mm orange flexible hose, int. Ø 14 mm
- 150 mm vinyl vent pipe, int. Ø 6 mm
- Drain connection assembly
- Attachment assembly
Features of product: ORANGE MINI PUMP- ASPEN - FP2212
- Package Weight (kg)
- 0.703
- Package Height (m)
- 0.055
- Package Width (m)
- 0.175
- Package Length (m)
- 0.26
- Flow Rate (l/h)
- 12
- Decibels (dB(A))
- 21
- Specifications
- Hauteur refoulement max. 10m
- Dimensions (mm)
- 116x39x51
- Power Supply / Voltage
- 230 V
- Logo Marque
- ASPEN
- Number
- 1
- Origin
- Fabriqué en France
- Power (W)
- 13.0
Aspen Lift Pump: Controlled Condensate Drainage
In an air conditioning or heat pump installation, condensate must be drained continuously to prevent overflow and safety shutdowns. The challenge is often related to the location of the indoor unit: in the absence of sufficient slope, a lift pump becomes essential.
Aspen pumps are valued for their compactness and installation flexibility. Depending on the model, the pump can be integrated into a trough, false ceiling, or near the indoor unit. The goal is to achieve stable drainage while maintaining discreet integration and accessible maintenance.
Key Elements of a Reliable Installation
A successful installation relies on proper sizing and suitable components:
-
Pump and suction module: ensure the lifting of condensate with consistent flow and appropriate discharge height.
-
Level detection: sensor or float, reliable triggering to avoid water accumulation.
-
Installation accessories: kits, brackets, fittings, and pipes to secure sealing and minimize vibrations.
How to Select the Right Aspen Model?
Measure the required lift height, discharge length, and identify the actual location of the pump (unit, trough, ceiling). A properly sized model reduces noise, limits cycles, and improves durability.
Technical Tip: ensure simple access for maintenance (cleaning, sensor check): this is a key point to avoid failures related to clogging.
