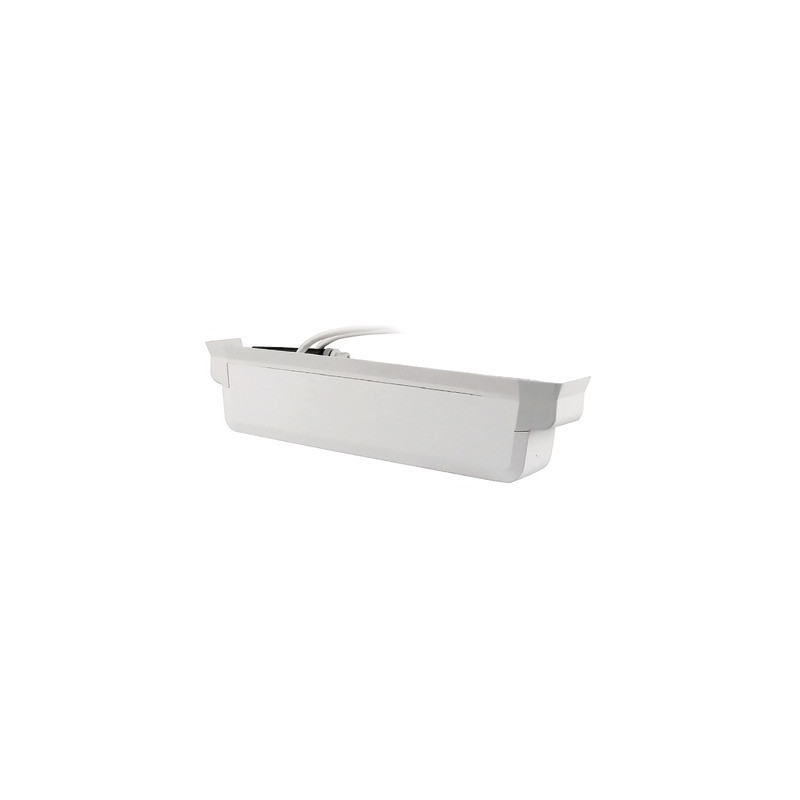

Mini Blanche Silence+- ASPEN - FP3450
FP3450/SA
€163.48
Colissimo
Delivery expected from 2026-09-24
Available
Delivery & returns
- ✓ Free delivery on orders over €79 in France
- ✓ Free returns within 30 days
Silencieuse, facile à installer, conçue pour s'installer des deux côtés de l'évaporateur.
Application :
- Les environnements domestiques où la réduction du bruit audible est d'une importance cruciale (16dB)
Avantages :
- Fonctionnement ultra silencieux
- Installation ultra rapide
- Compacte et discrète
- Réservoir amovible
Caractéristiques techniques :
- Débit max : 45l/h
- Hauteur max rec. : 10m
- Niveau sonore à 1m : 16dB
- Alimentation électrique : 230VCA, 50-60Hz, 0.18A, 2.1W
- Fonctionnement : continu
- Classe d'isolation : Appareil II
- Puissance max du climatiseur : 16kW (54 000Btu/h)
- Température atmosphérique ambiance max. : 40°C
- Indice de protection IP : IP24
- Entrée : Øext 16mm(5/8") - 26mm(1")
- Tuyau d'évacuation : Øext 6mm(1/4")
- Interrupteur de sécurité : 5.0A, contacts normalement ouvert et normalement fermé
Contenu du kit :
- Pompe Mini Blanche Silence+ (y compris le câble d'alimentation de 1m)
- Gabarit de montage
- Coude de sortie
- Capuchons à vis
- Entretoise
Features of product: MINI BLANCHE SILENCE+- ASPEN - FP3450
- Package Weight (kg)
- 0.79
- Package Height (m)
- 0.055
- Package Width (m)
- 0.1
- Package Length (m)
- 0.31
- Flow Rate (l/h)
- 45
- Decibels (dB(A))
- 16
- Specifications
- Hauteur refoulement max. 10m
- Dimensions (mm)
- 292x54x48
- Logo Marque
- ASPEN
- Number
- 1
Aspen Lift Pump: Controlled Condensate Drainage
In an air conditioning or heat pump installation, condensate must be drained continuously to prevent overflow and safety shutdowns. The challenge is often related to the location of the indoor unit: in the absence of sufficient slope, a lift pump becomes essential.
Aspen pumps are valued for their compactness and installation flexibility. Depending on the model, the pump can be integrated into a trough, false ceiling, or near the indoor unit. The goal is to achieve stable drainage while maintaining discreet integration and accessible maintenance.
Key Elements of a Reliable Installation
A successful installation relies on proper sizing and suitable components:
-
Pump and suction module: ensure the lifting of condensate with consistent flow and appropriate discharge height.
-
Level detection: sensor or float, reliable triggering to avoid water accumulation.
-
Installation accessories: kits, brackets, fittings, and pipes to secure sealing and minimize vibrations.
How to Select the Right Aspen Model?
Measure the required lift height, discharge length, and identify the actual location of the pump (unit, trough, ceiling). A properly sized model reduces noise, limits cycles, and improves durability.
Technical Tip: ensure simple access for maintenance (cleaning, sensor check): this is a key point to avoid failures related to clogging.
