Silence+ lime mini pump- ASPEN - FP3322/5
FP3322/5/SA
€137.18
Colissimo
Delivery expected from 2026-09-24
Available
Delivery & returns
- ✓ Free delivery on orders over €79 in France
- ✓ Free returns within 30 days
The Aspen Silence+ lime mini FP3322/5 is a condensate lift pump designed for wall-mounted split air conditioning systems up to 46 kW. It stands out for its ultra-quiet operation (16 dB(A) at 1 metre) and its fifth-generation technology, which delivers optimum performance while reducing energy consumption.
Technical characteristics:
- Maximum airflow: 40 L/h at a height of 0 m
- Max discharge height: 15 m
- Noise level: 16 dB(A) at 1 metre
- Power supply: 100-250 V AC, 50/60 Hz, 0.18 A, 2.1 W
- Insulation class: Class II appliance
- Protection rating: IP24
- Maximum ambient temperature: 40 °C
- Inlet: Ø 16 mm
- Outlet: Ø 6 mm
- Safety switch: 5 A (normally closed)
- Weight: 0.375 kg
Advantages:
- Ultra-quiet operation, ideal for noise-sensitive environments
- Quick and easy installation with no need for damper or air vent
- Compatible with all standard types of trunking
- Energy consumption up to 10 times lower than that of traditional models
- Self-priming and reverse-compatible with older cables

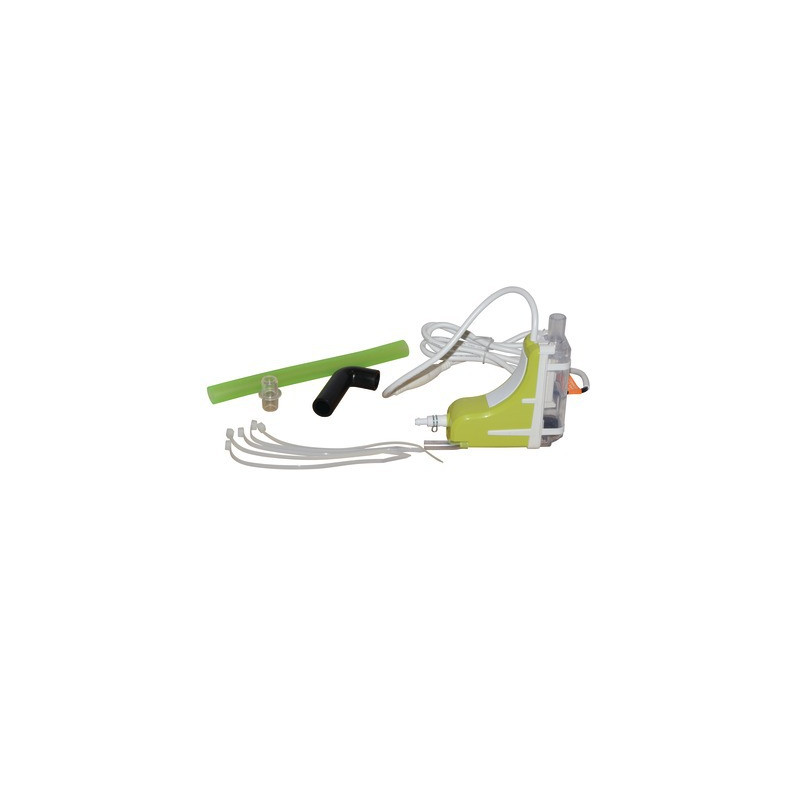

Kit contents:
- Silence+ Lime Mini pump with 1.5 m Plug&Play cable
- Lime inlet hose, 14 mm (500 mm)
- 6 mm vinyl breathing hose (40 mm)
- Installation accessories: connectors, clamps, mounting kit
This pump is ideal for the rapid and quiet drainage of condensate, while optimising energy consumption. Its compact design and high level of reliability make it the solution of choice for discerning installers.
Features of product: SILENCE+ LIME MINI PUMP- ASPEN - FP3322/5
- Package Weight (kg)
- 0.546
- Package Height (m)
- 0.063
- Package Width (m)
- 0.178
- Package Length (m)
- 0.203
- Number
- 1
Aspen Lift Pump: Controlled Condensate Drainage
In an air conditioning or heat pump installation, condensate must be drained continuously to prevent overflow and safety shutdowns. The challenge is often related to the location of the indoor unit: in the absence of sufficient slope, a lift pump becomes essential.
Aspen pumps are valued for their compactness and installation flexibility. Depending on the model, the pump can be integrated into a trough, false ceiling, or near the indoor unit. The goal is to achieve stable drainage while maintaining discreet integration and accessible maintenance.
Key Elements of a Reliable Installation
A successful installation relies on proper sizing and suitable components:
-
Pump and suction module: ensure the lifting of condensate with consistent flow and appropriate discharge height.
-
Level detection: sensor or float, reliable triggering to avoid water accumulation.
-
Installation accessories: kits, brackets, fittings, and pipes to secure sealing and minimize vibrations.
How to Select the Right Aspen Model?
Measure the required lift height, discharge length, and identify the actual location of the pump (unit, trough, ceiling). A properly sized model reduces noise, limits cycles, and improves durability.
Technical Tip: ensure simple access for maintenance (cleaning, sensor check): this is a key point to avoid failures related to clogging.
