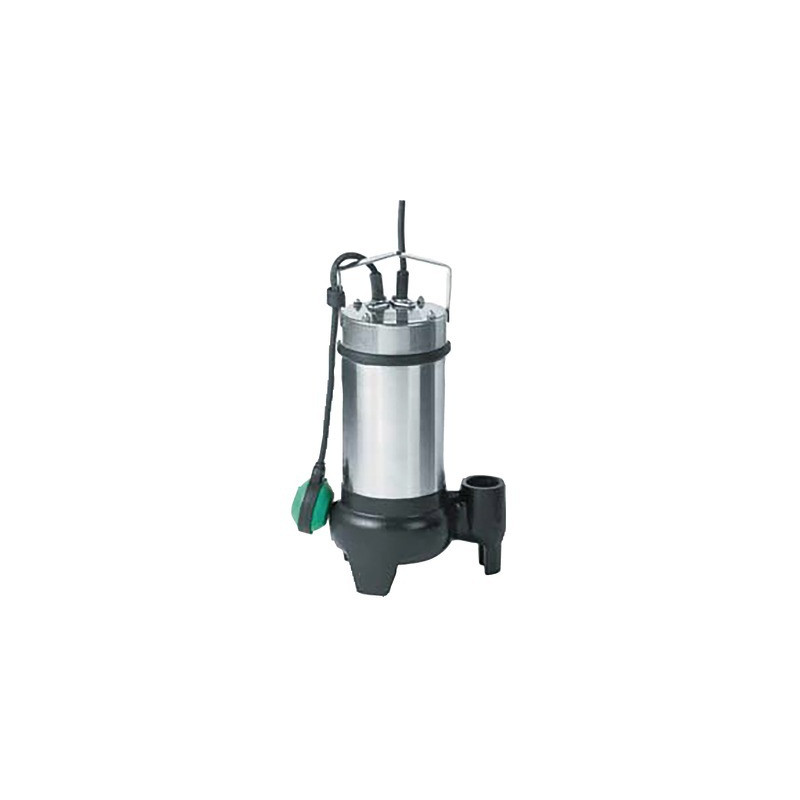

Rexa pump MINI3-V04.11/M06-523/A-5M- WILO - 3094005
3094005/WI
€862.24
Colissimo
Delivery expected from 2026-09-24
Available
Delivery & returns
- ✓ Free delivery on orders over €79 in France
- ✓ Free returns within 30 days
Applications:
Submersible pump for stationary and portable submerged installation, for intermittent operation.
For the disposal in the home of:
> Contaminated water without faecal matter
> Wastewater (containing little sand and gravel)
Technical characteristics:
Pump/impeller material: Grey cast iron / PK-GF30
Ambient temperature range: 3 - 40 °C
Liquid temperature range: 3 - 40 °C
Max. operating pressure: 1.2 bar
Max. flow : 21.0 m³/h
Max. pressure gauge height : 11.0 m>
Discharge connector: G1½"
Particle size in water: 40 mm
Immersion depth: 2 m
Maximum power consumption P1: 93 W
Rated voltage: 1 x 230V
Submerged operating mode: S1
Non-submerged operating mode: S3-25%
Protection rating (IEC 34-5): IP68
Length of connection cable: 5 m
Cable type and cross-section: H07RN-F - 3G 1 mm²
Type of connection cable: detachable
Equipment: Float switch
Features of product: REXA PUMP MINI3-V04.11/M06-523/A-5M- WILO - 3094005
- Package Weight (kg)
- 16.2
- Package Height (m)
- 0.53
- Package Width (m)
- 0.21
- Package Length (m)
- 0.25
- Logo Marque
- WILO
The Wilo brand is globally recognized for its high-quality and performance-driven circulation pumps and pumping systems. Designed for domestic or tertiary use, the Wilo range meets the strictest requirements for heating, air conditioning, water supply, and wastewater disposal.
On Expertbynet, we offer a wide selection of Wilo pumps and circulators suitable for all types of installations. Whether you are looking for a circulator for your central heating, a pump for boosting pressure, or equipment for sanitation, you will find reliable, compact, and energy-efficient models.
Wilo products stand out for their robustness, ease of installation, and advanced technology. With their high-efficiency motors, these devices help reduce your home's energy consumption while ensuring quiet and durable operation.
By ordering from Expertbynet, you benefit from a carefully curated selection of Wilo products for individuals, fast delivery, and professional assistance in choosing your parts. Our detailed product sheets allow you to easily compare models and select the equipment best suited to your installation.
Trust Expertbynet to equip your installation with the best hydraulic solutions from Wilo. A trusted brand for optimal thermal comfort, both summer and winter.
