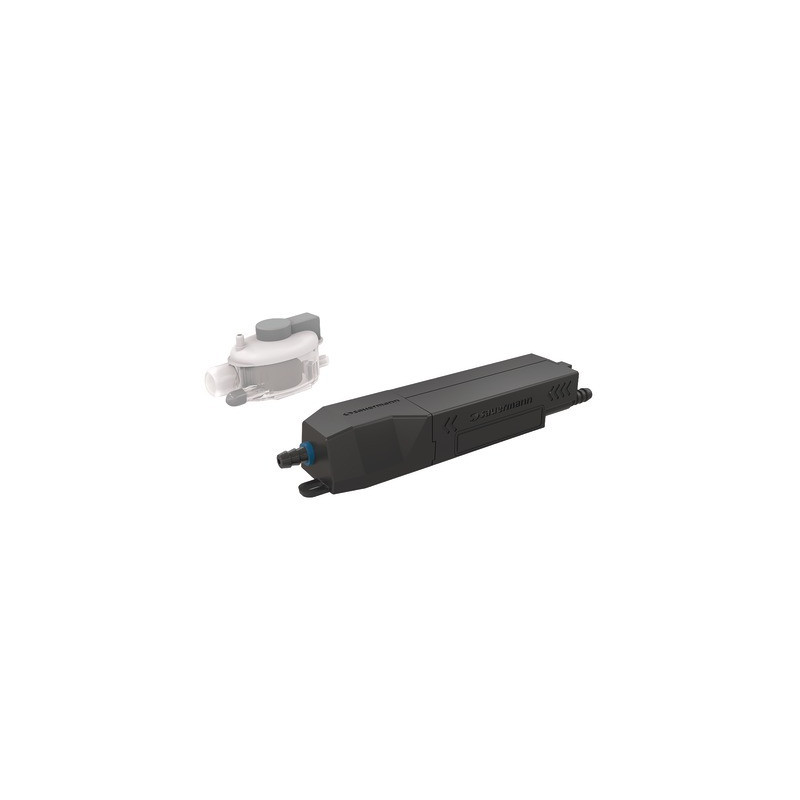

    Mini Pompe Si-21 Silent Flow- SAUERMANN - SI21CU01UN00

    SI21CU01UN00/SR
    €161.10
    Quantity

    Colissimo Delivery expected from 2026-09-24

    Available

    Delivery & returns
    • ✓ Free delivery on orders over €79 in France
    • ✓ Free returns within 30 days
    Find out more about terms and conditions

    La mini pompe Si-21 Silent Flow est conçue pour assurer l'évacuation des condensats produits par les climatiseurs et les pompes à chaleur lorsque l'écoulement gravitaire n'est pas possible.

    Équipée d'une technologie à membrane intelligente, elle adapte automatiquement son débit au volume de condensats généré par l'installation. Son fonctionnement particulièrement silencieux en fait une solution idéale pour les chambres, bureaux et autres espaces où le confort acoustique est essentiel. Grâce à son design compact et effilé, elle s'intègre facilement à l'intérieur des unités de climatisation, des goulottes, des faux plafonds ou des combles, tout en facilitant les opérations d'installation et de maintenance.

    Contenu du kit:

    • Pompe avec connecteurs
    • Tube PVC transparent équipé d'une mousse isolante sur 800mm
    • Câble d'alimentation : 1,5m
    • Bloc de détection à filtre.
    • Tube PVC transparent ø6mm lg 1m équipé d'un connecteur “Drain Safe Device”.
    • Attache auto-agrippante 125x25mm.
    • 3 colliers de serrage.
    • 3 rilsans (2,5x200mm).
    • Kit d'installation du bloc de détection (raccord 90° ø15mm x L152mm, tube d'évent ø4mm x 75mm, rail de fixation, adhésif).

    Informations techniques :

    • Référence SAUERMANN : SI21CU01UN00.
    • Pompe à membrane intelligente.
    • Plug&Play : connexion et déconnexion faciles.
    • Peut remplacer la plupart des modèles de mini pompes.
    • Installation et entretien rapides.

    Une installation conforme permet d'assurer une évacuation fiable des condensats et de préserver les performances des équipements de climatisation et de pompe à chaleur.

    Information relative à la sécurité :

    Pour vous prémunir contre tout risque électrique, veillez à couper l'alimentation électrique de la charge avant toute intervention. En cas de doute, ne prenez pas le risque d'une mauvaise installation : Demandez conseil auprès d'une personne qualifiée, d'un électricien.

    Features of product: MINI POMPE SI-21 SILENT FLOW- SAUERMANN - SI21CU01UN00

    Package Weight (kg)
    0.479
    Package Height (m)
    0.08
    Package Width (m)
    0.18
    Package Length (m)
    0.18
    Flow Rate (l/h)
    20
    Decibels (dB(A))
    17
    Dimensions (mm)
    26 x 36
    Protection
    Fusible 1 A intégré
    Power (kW)
    20.0
    Product type
    Kit pompe

    Sauermann Lift Pump: Ensuring Condensate Drainage

    Modern installations (condensing boilers, heat pumps, air conditioners) produce condensates that must be drained continuously. A failure in drainage can cause overflow, safety lockouts, or moisture damage. When natural drainage is not possible, the lift pump ensures the transfer of condensates to the drainage system.

    Sauermann pumps are developed to meet the needs of residential settings: compact design, consistent operation, integration into technical areas, and materials compatible with acidic condensates. The choice of pump primarily depends on expected flow rate, lift height, and installation type (wall-mounted, false ceiling, duct).

    Key Components for Reliable Lifting

    Depending on the configuration, several elements contribute to the reliability of drainage:

    • Pump / lift module: ensures condensate transfer with an appropriate flow rate and a manometric height consistent with the piping layout.

    • Level detection system: float or sensor, it activates the pump at the right time and minimizes the risk of overflow.

    • Check valve and fittings: reduce backflow and secure drainage, especially in vertical lifting applications.

    How to Choose the Right Sauermann Pump?

    Before selecting a model, identify the lift height, discharge length, type of device (boiler/heat pump/AC), and installation location. A properly sized pump limits unnecessary cycles, stabilizes drainage, and reduces noise.

    Technical advice: check compatibility with acidic condensates, and size the lift height according to the highest point in the path, not just the horizontal distance.
