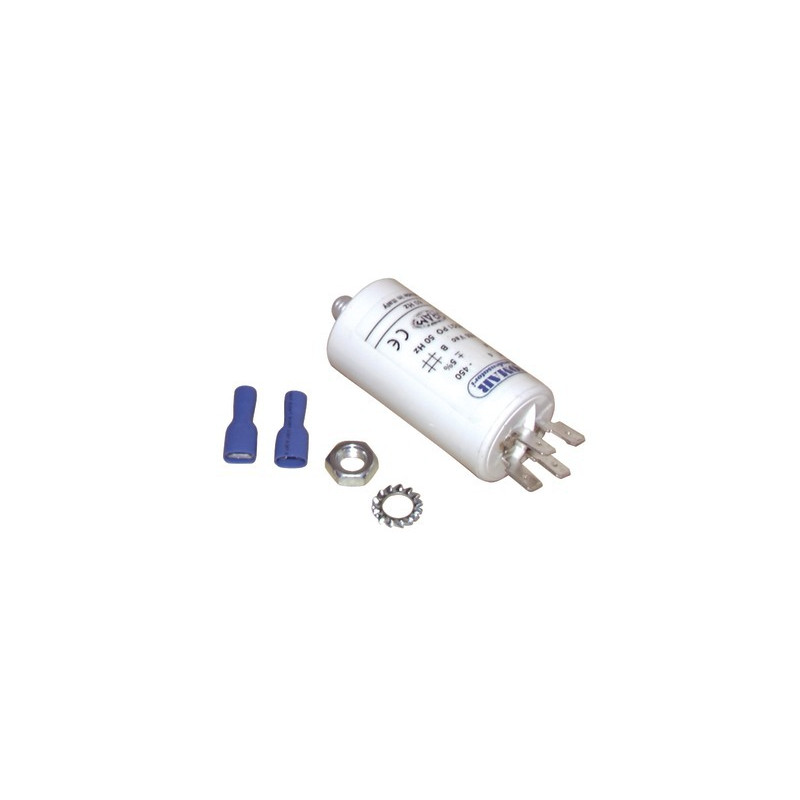

Permanent capacitor 2.5 µf Ø30 xlg59 xoverall 84- DIFF - 701544
701544
€14.52
Permanently under voltage, the capacitor assures the motor a supply during an auxilary phase. The mentioned voltage on the body of the capacitor has nothing to do with the sector voltage. The replacement by a higher voltage capacitor is possible, but not the opposite. If the replacement capacitor displays a capacity in micro farad (µF) more or less than 20%, the motor can start but gives a torque and a speed not sufficient, prejudicial to its longetivity. Delivered with a kit comprised of : PVC tube; Service voltage alternating 400/500 volts; 2pods Faston in a set 6.5; 1 nut for binding.
Colissimo
Delivery expected from 2026-09-25
Available
Delivery & returns
- ✓ Free delivery on orders over €79 in France
- ✓ Free returns within 30 days
As they are constantly energised, they supply the motor with power from an auxiliary phase. The voltage marked on the body of the capacitors is not related to the mains voltage. It is possible to replace it with a capacitor of a higher voltage, but not the other way round. If the replacement capacitor has a capacitance in microfarads (µF) that is more or less than 20 per cent of the specified value, the motor may start but will deliver insufficient torque and speed, which may affect its service life.
Supplied with:
- PVC pipe
- 2 x 6.5 faston crimp terminals
- 1 fastening nut
Features of product: PERMANENT CAPACITOR 2.5 ΜF Ø30 XLG59 XOVERALL 84- DIFF - 701544
- Package Weight (kg)
- 0.054
- Package Height (m)
- 0.03
- Package Width (m)
- 0.12
- Package Length (m)
- 0.19
- Ø
- 30x59
- Power Supply / Voltage
- 400 V
- Length (mm)
- 84.00
- Number
- 1
