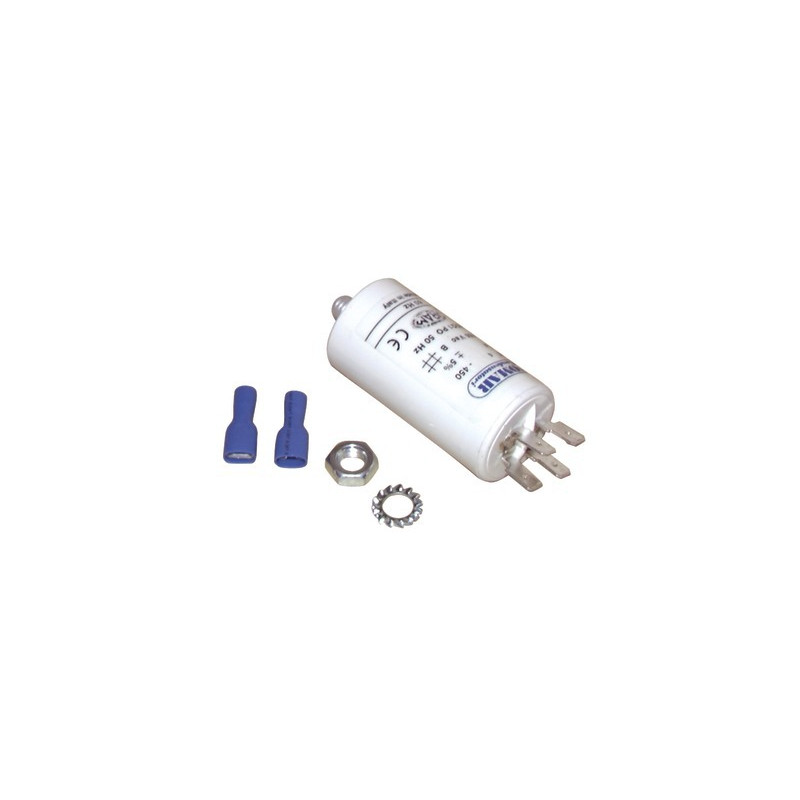

Permanent condensator 4 µf Ø30 xlg60 x overall 84- DIFF - 701546
701546
€20.00
Permanently under tension , they supply the motor with an auxiliary phase. Voltage mentionnen on the condensator body is different from the main voltage. Replacement by a condensator with a higher voltage is possible, not the contrary. If the condensator displays a capacity in micro farad (µF) with more or less 20%, the motor can start but provides insufficient torque and speed, which can affect the lifetime. Supplied with kit including: - PVC pipe - Main voltage 400/500 volts alternating - 2 faston terminals to be crimped 6.5 - 1 nut for fixing
Colissimo
Delivery expected from 2026-09-25
Available
Delivery & returns
- ✓ Free delivery on orders over €79 in France
- ✓ Free returns within 30 days
As they are constantly energised, they supply the motor with power from an auxiliary phase. The voltage marked on the body of the capacitors is not related to the mains voltage. It is possible to replace it with a capacitor of a higher voltage, but not the other way round. If the replacement capacitor has a capacitance in microfarads (µF) that is more or less than 20 per cent of the specified value, the motor may start but will deliver insufficient torque and speed, which may affect its service life.
Supplied with:
- PVC pipe
- 2 x 6.5 faston crimp terminals
- 1 fastening nut
Features of product: PERMANENT CONDENSATOR 4 ΜF Ø30 XLG60 X OVERALL 84- DIFF - 701546
- Package Weight (kg)
- 0.056
- Package Height (m)
- 0.035
- Package Width (m)
- 0.12
- Package Length (m)
- 0.2
- Ø
- 30x60
- Length (mm)
- 84.00
