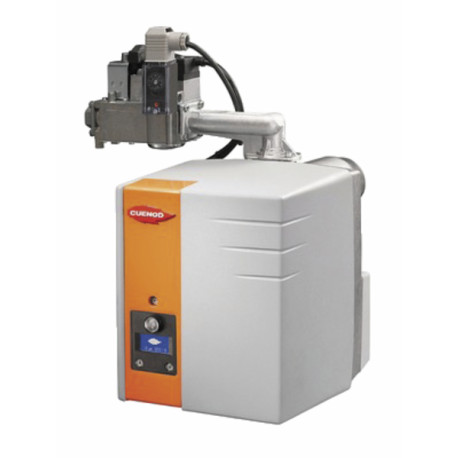

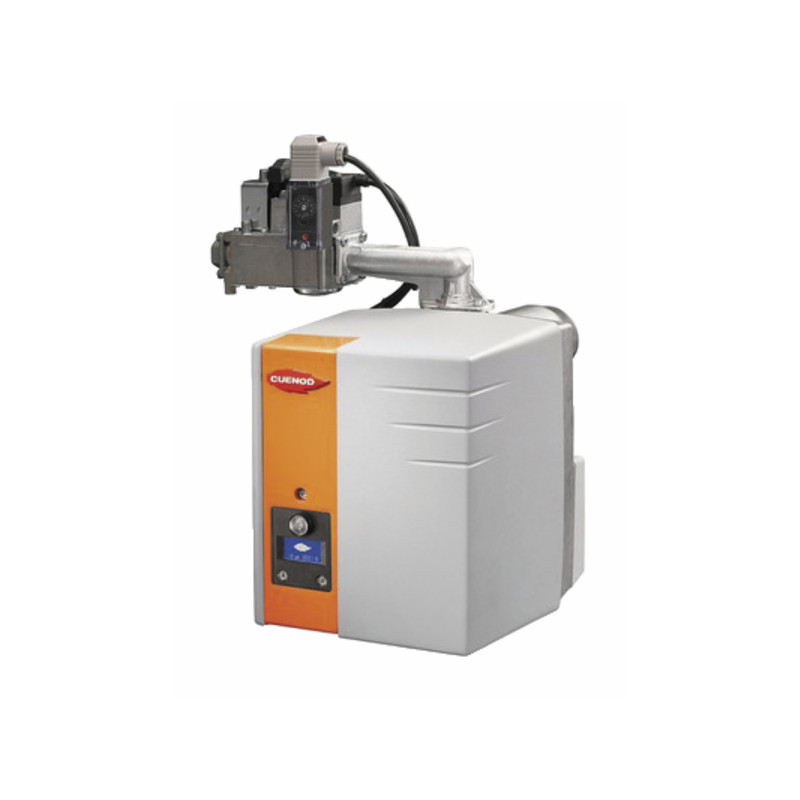

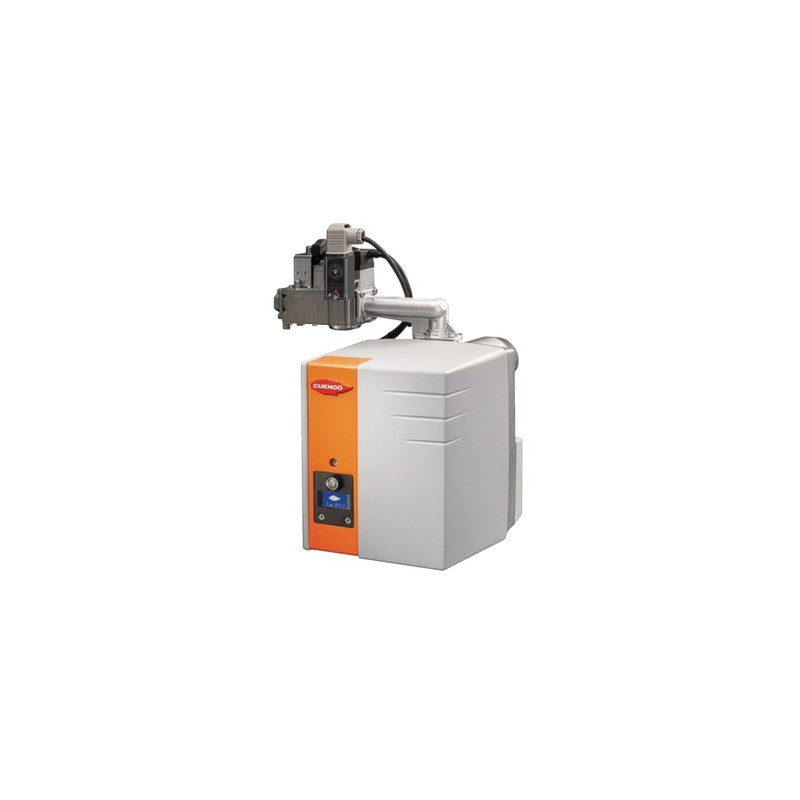

Gas burner CB-NC4 GXE- CUENOD - 3836557

Why choose the CUENOD gas burner?

The Cuenod NC4 burner is a low NOx emission forced-air burner and can be adapted to each domestic gas boiler. In addition, the power consumption of the burner is reduced without changing the fact that this gas burner includes an automatic system to check the seal of the gas valve at burner start-up. It comprises a digital display for a better understanding of the data.

Prefer a clean and silent burner

The advantages of the burner




Trap entirely in the air inlet





Air box made of composite materials with a structure operating as a sound trap (NC4 Pro View)





Seal on the air circuit, air circuit under pressure





Polypropylene cover





2 NC4 Pro View, the only burner with integrated digital display.





Twice as quiet as the previous generation, the unique MDE2 system used with the CUENOGRAM, allows for monitoring of operation, defects and operating data.





Gas manifold with integrated filter, wired and tested in the factory. Maximum security verification of gas valve sealing.




Characteristics of the gas burner:




NC4 GX107/8A 14,5 to 40 kW





Dimensions of the flume tube: diameter 80 mm x 70/110 mm

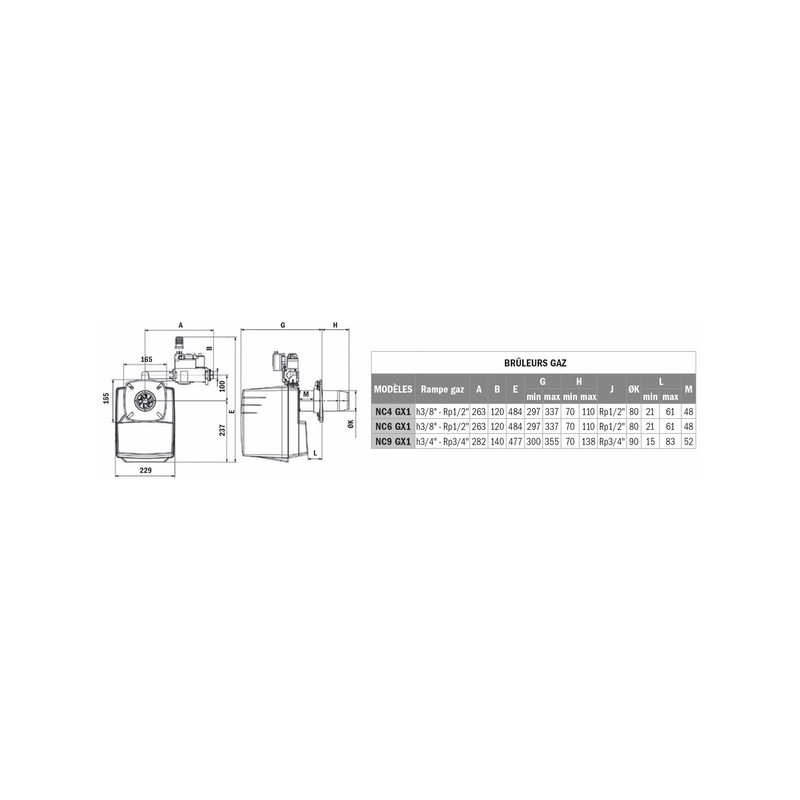

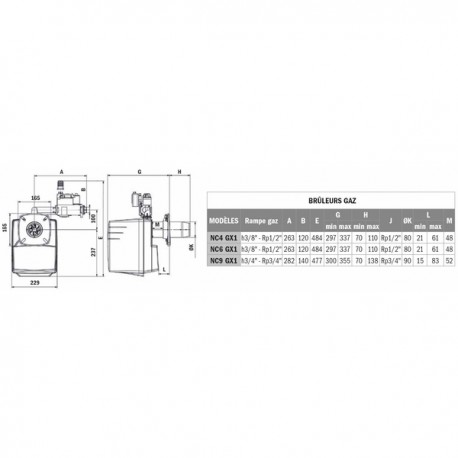

Burner dimensions excluding flame tube: 297/337 mm x 337 mm x 229 mm





Connection flange

diameter a: 85... 104







diameter b: 150... 170







M8







45 degrees






Gas manifolds:






Power range (kW): 14.5 - 40







Maximum gas pressure (mbar): 20 - 50







Gas manifold: h3/8" - Rp 1/2"







Valve: VR4625







Filter: Integrated







1 speed: yes





How to adjust a Cuenod NC4 burner

To set and commission the Cuenod burner, you must make the gas connection between the gas network and the burner gas manifold. The burner gas valve then regulates the fuel. The electrical connection must also be made taking the electrical characteristics into account (power, voltage and frequency specified on the rating plate. The control box, also known as the safety box, needs to be configured for correct operation of the gas burner. A technical booklet is supplied with the Cuenod burner to assist you in your installation.
Guarantee: 1 year for spare parts (excluding wear parts) provided that it is put into service and maintained by a qualified professional Additional information: this product is sold in the boiler manufacturer's packaging, it has not been modified in any way.
