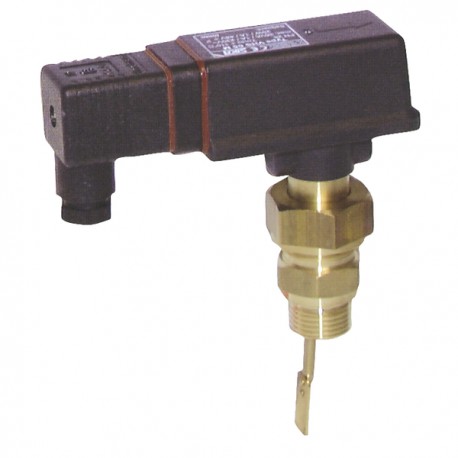

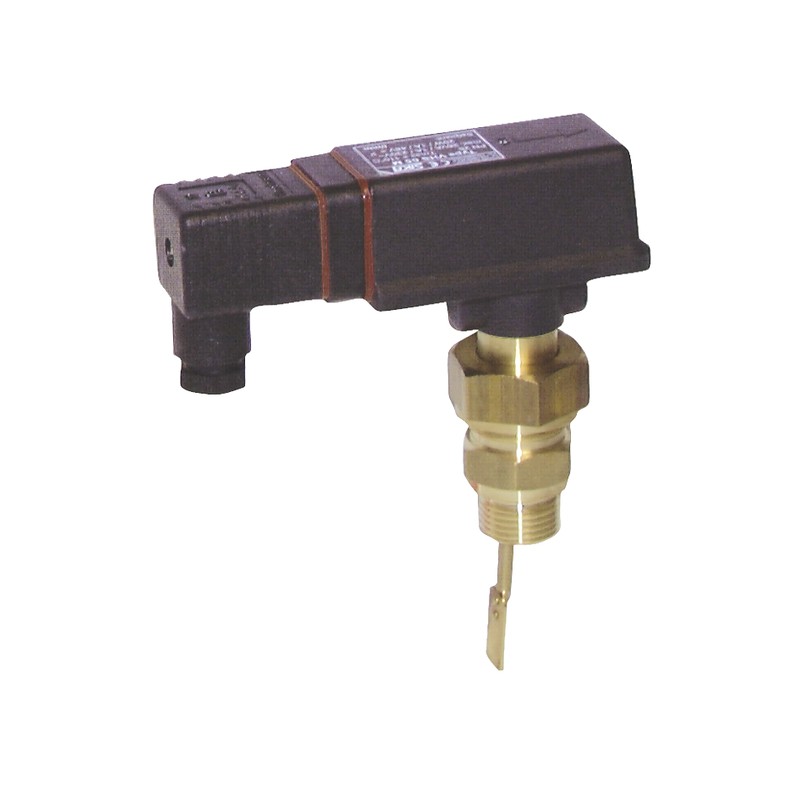

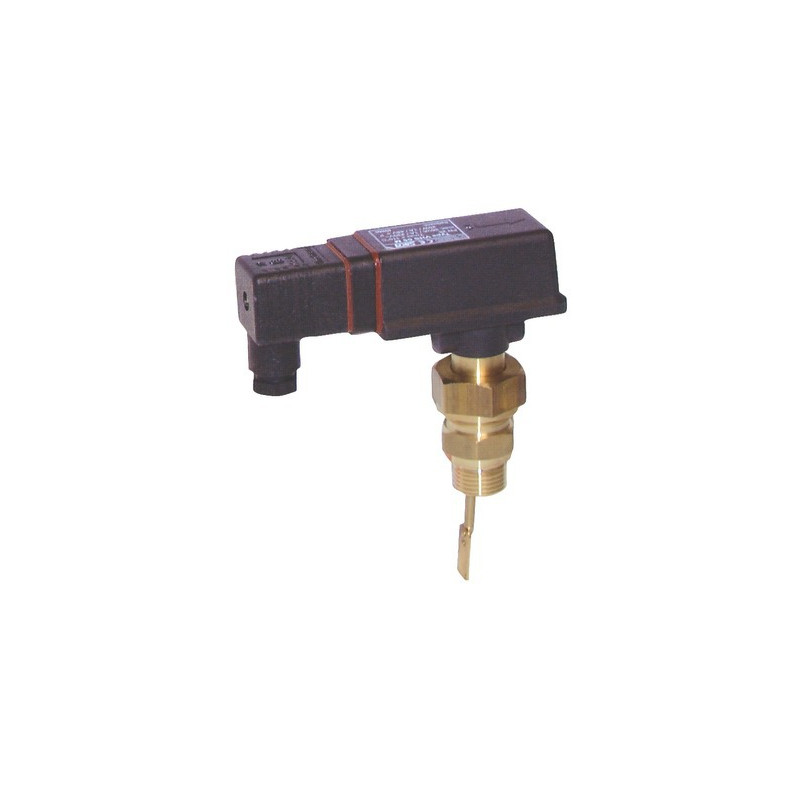

Blade flow controller type vhs05m- SIKA - VHS05M-MS
  • Blade flow controller type vhs05m- SIKA - VHS05M-MS

Blade flow controller type vhs05m- SIKA - VHS05M-MS

704507
€436.27

Flow controllers,very reliable, are used to detect the beginning or the end of a flow in horizontal piping with liquids. Activated by a blade, they are used for liquid flow in piping of 2" and more. VH05M controllers,activated by a disk, detect clean liquids in piping of 2" and less. Supplied with connector to weld. For liquid : water, oil, fuel... APPLICATION : Industrial installation Heating installation Boiler COMPOSITION : Brass body Brass blade TECNICALS FEATURES : Reversing contact: 5A - 250VAC Protection : IP 65 Max pressure : 25 bars Max fluid temperature : 100°C Drop pressure : 0,01 bar Hysteresis : 15% Connector F 3/4 Connector M1/2" Dimensions : Length 120mm Width 38mm Height with blade 143mm Vertical assembly

Quantity

Colissimo Delivery expected from 2026-09-24

Available

Delivery & returns
  • ✓ Free delivery on orders over €79 in France
  • ✓ Free returns within 30 days
Find out more about terms and conditions

Flow controllers,very reliable, are used to detect the beginning or the end of a flow in horizontal piping with liquids.Activated by a blade, they are used for liquid flow in piping of 2" and more.VH05M controllers,activated by a disk, detect clean liquids in piping of 2" and less.Supplied with connector to weld.For liquid : water, oil, fuel...APPLICATION : Industrial installation Heating installation BoilerCOMPOSITION :Brass bodyBrass bladeTECNICALS FEATURES :Reversing contact: 5A - 250VACProtection : IP 65Piping : DN50 to DN150Adjusting DN50 : 1,9 to 2,7m3/hourAdjusting DN80 : 5 to 8m3/hourAdjusting DN100 : 8,3 to 12,5m3/hourAdjusting DN150 : 17,5 to 25m3/hourMax pressure : 25 barsMax fluid temperature : 100°C Drop pressure : 0,01 barHysteresis : 15% Connector F 3/4Connector M1/2"Dimensions :Length 120mmWidth 38mmHeight with blade 143mmVertical assembly

Features of product: BLADE FLOW CONTROLLER TYPE VHS05M- SIKA - VHS05M-MS

Package Weight (kg)
0.428
Package Height (m)
0.05
Package Width (m)
0.135
Package Length (m)
0.2
Ø
50 à DN 150
Length (mm)
105.00
