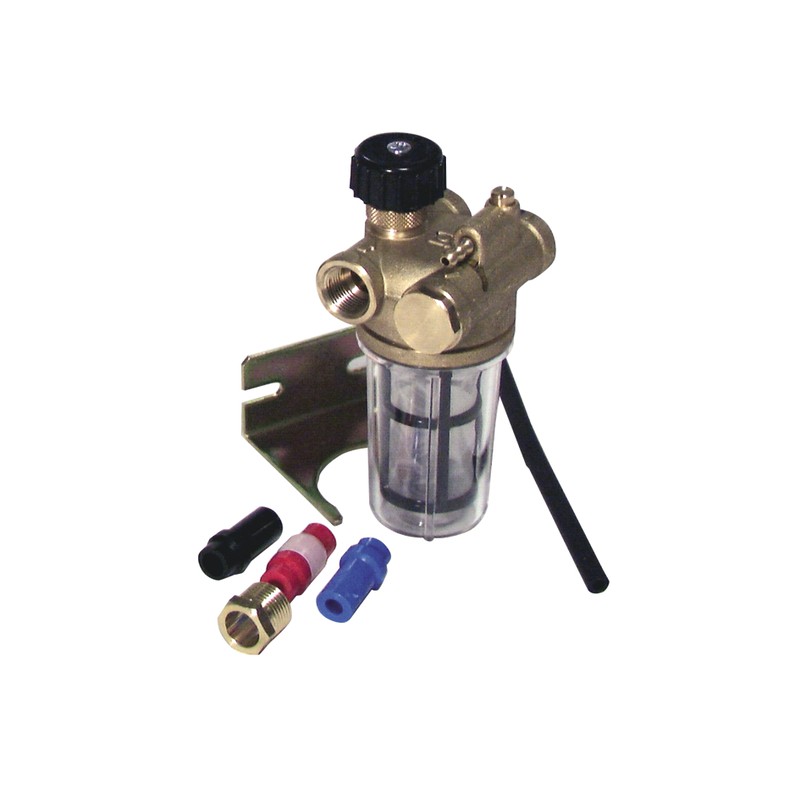

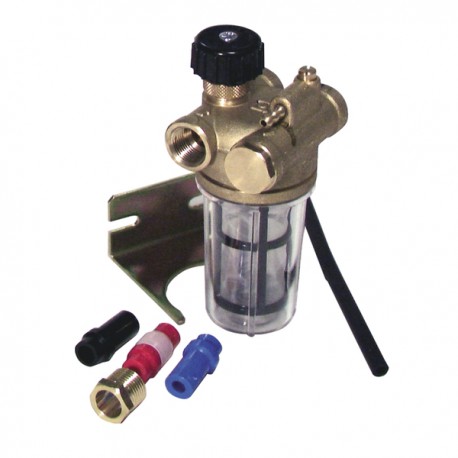

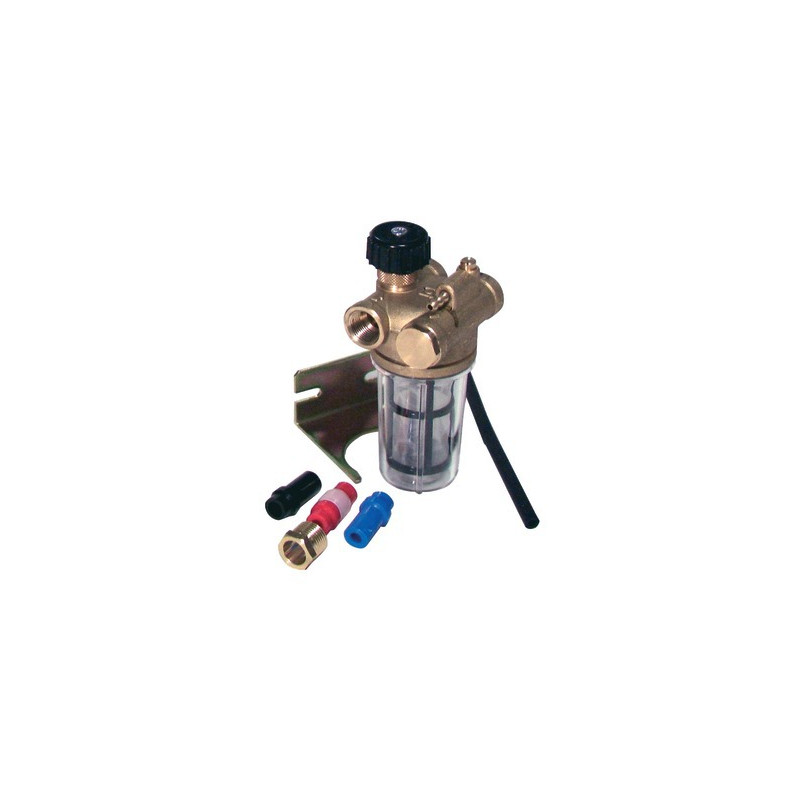

Filter fuel rz recycling with block valve ff3/8"- WATTS INDUSTRIES - 22L0137100
903459
€144.54
Brass filter for one-pipe installation with burner pump with 2 hoses.It permits the removing of the return pipe at the tank and using a pipe with a low diameter. Stop valve by suction, filter transparent bowl (resistant at 10°C - 6 bars) in immutable resin to screw with impermeability by o-ring. Type RV diameter FF3/8". Supplied with fittings Ø8mm - 10mm - 12mm and metallic fixing bracket. Charge losses : 28mm CE at 50L/h, 90mm CE at 100L/h. Flow 400L/h with filter clean. Flow : 100L/h with filter blocked at 75%. Caution : the return pressure to the pump must not be lower at 0,8 bar
Colissimo
Delivery expected from 2026-09-24
Available
Delivery & returns
- ✓ Free delivery on orders over €79 in France
- ✓ Free returns within 30 days
Brass filter for one-pipe installationwith burner pump with 2 hoses.It permits the removing of the return pipe at the tank and using a pipe with a lowdiameterStop valve by suction, filtertransparent bowl (resistant at 10°C - 6 bars)in immutable resin to screw with impermeability by o-ringType RV diameter FF3/8" Supplied with fittings Ø8mm - 10mm - 12mmand metallic fixing bracketCharge losses : 28mm CE at 50L/h90mm CE at 100L/hFlow 400L/h with filter cleanFlow : 100L/h with filter blocked at 75%Caution : the return pressure to the pumpmust not be lower at 0,8 bar
Features of product: FILTER FUEL RZ RECYCLING WITH BLOCK VALVE FF3/8"- WATTS INDUSTRIES - 22L0137100
- Package Weight (kg)
- 0.535
- Package Height (m)
- 0.06
- Package Width (m)
- 0.09
- Package Length (m)
- 0.15
