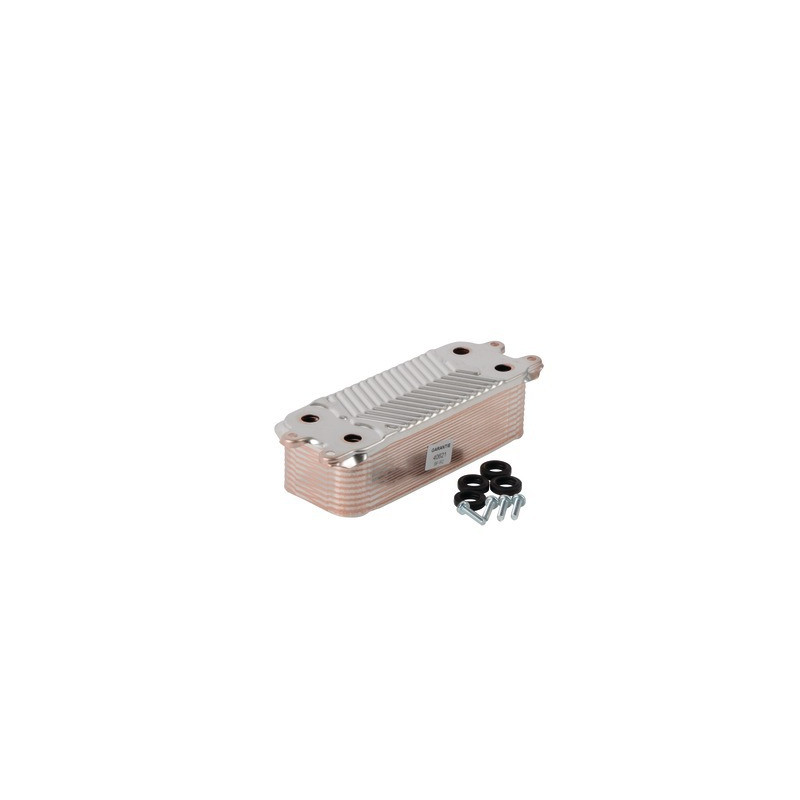

Heat exchanger dhw (19 plates)- DIFF pour Vaillant - 0020038572
  • Heat exchanger dhw (19 plates)- DIFF pour Vaillant - 0020038572

Heat exchanger dhw (19 plates)- DIFF pour Vaillant - 0020038572

40621
€172.04
Quantity

Colissimo Delivery expected from 2026-09-24

Available

Delivery & returns
  • ✓ Free delivery on orders over €79 in France
  • ✓ Free returns within 30 days
Find out more about terms and conditions

DIFF domestic hot water heat exchanger for boilers

With the DIFF plate heat exchanger, it is possible to replace a DHW heat exchanger in a boiler. The DIFF plate heat exchanger can be used in over fifty different Vaillant boilers.

This is particularly true of a wide range of Vaillant models, such as the VMW 346, VMW 306 and VMW 280.

It can also be used to repair Vaillant VUW 242 and even VUW 306 boilers.

How the DIFF plate heat exchanger works

A combi boiler features a domestic hot water circuit and a heating circuit.

The heating circuit draws its heat from the fuel burnt in the boiler, which is then distributed throughout the heating system via the appliance heating unit.

The hot water circuit draws its heat from the heating circuit itself. The water in the heating circuit flows into one side of the heat exchanger and out of the other. Domestic hot water flows through it in the opposite direction.

The two circuits do not mix: exchanger plates transfer the heat from one circuit to the other. This is why the hot water exchanger is called a plate heat exchanger.

Once the water has been heated, it can flow to the household taps.

Additional information:
This part is an original spare part from parts manufacturer, it is labelled and packaged under the DIFF distribution brand

Features of product: HEAT EXCHANGER DHW (19 PLATES)- DIFF POUR VAILLANT - 0020038572

Package Weight (kg)
1.094
Package Height (m)
0.09
Package Width (m)
0.08
Package Length (m)
0.235

Repairing a Vaillant Boiler: Functional Compatibility and Heating Stability

Vaillant boilers incorporate precise regulation and safety devices that condition heating stability and the production of domestic hot water. Over time, some components can wear out: sensors, hydraulic parts, control boards, or safety elements. A well-chosen part can restore functionality without replacing the unit.

Vaillant DIFF° spare parts cover the most stressed components in wall-mounted gas boilers, whether conventional or condensing. Compatibility must be verified beyond form: connectivity, sensor calibration, electronic version, and control logic are critical to avoid recurring faults.

Key Components for Your Repair

Depending on the issue encountered, the following elements are often involved:

  • Probes and sensors: essential for reliable measurement (temperature, pressure) and stable regulation.

  • Valves and hydraulics: 3-way valves, circulating pumps, and associated parts, in case of heating/DHW or circulation failure.

  • Electronics and safety: control boards, pressure switches, control elements, in case of error codes or unexpected shutdowns.

Identifying the Correct Vaillant Reference

Locate the exact reference of the boiler (nameplate) and the reference of the original component. In some series, a version difference may render a part incompatible despite a similar appearance.

Technical Advice: if the boiler is condensing, also check the state of the ducts and condensate drainage: a clean and properly drained installation minimizes safety triggers.
