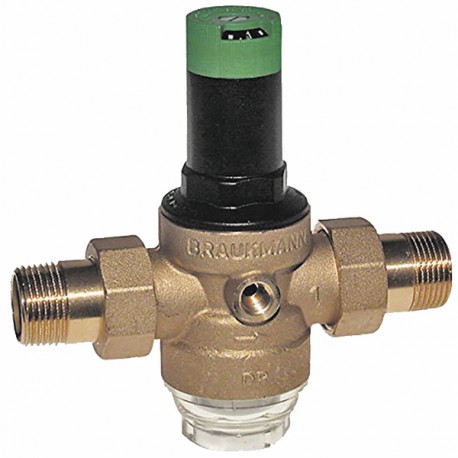

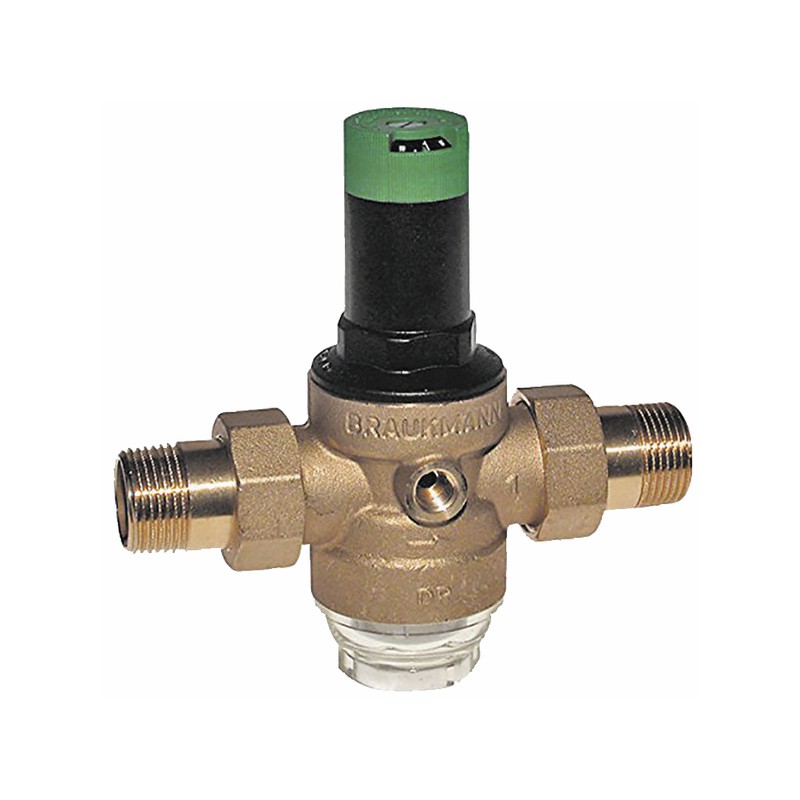

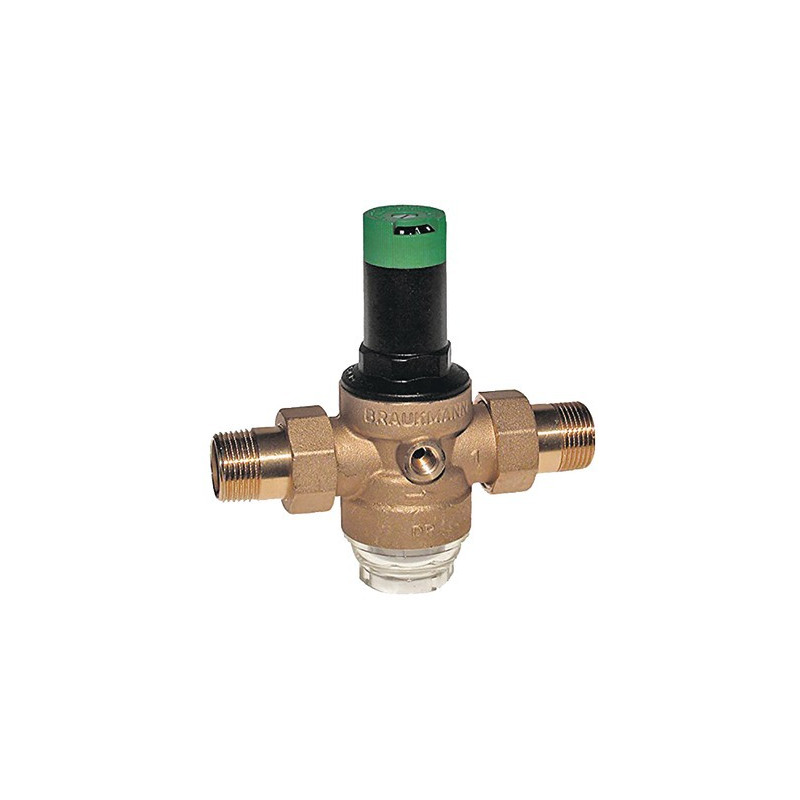

Pressure reducing valve D06F removable integrated filter M 3/4- RESIDEO - D06F-3/4A

Reliability and accuracyACS, DVGW approvedThe pressure regulating valve D06F protects drinking water installations from excessive pressure variations. Installing a pressure regulator can achieve significant water savings. The set pressure is maintained constant despite inlet pressure fluctuations. Pressure reducing valve with balanced seat and set point scaleInlet/outlet connection: threaded connection setMano connector 1/4?Static pressure: PN16Integrated filter: 0.16mmSetpoint scale: yesBalanced seat: yesPressure setting range: 1.5 to 6 barsFilter bowl: clearMax. operating temperature: 40°Diameter of ports: 1/2?With male threaded connectionsFlow Kvs: 2.4
