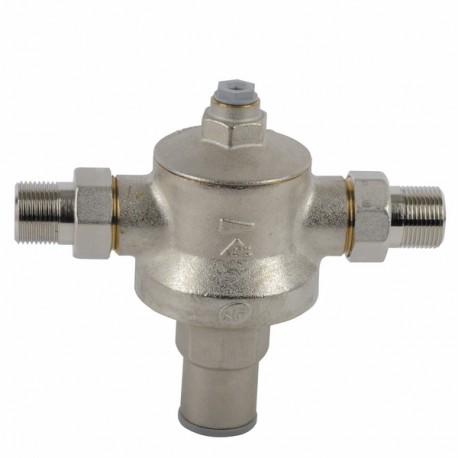

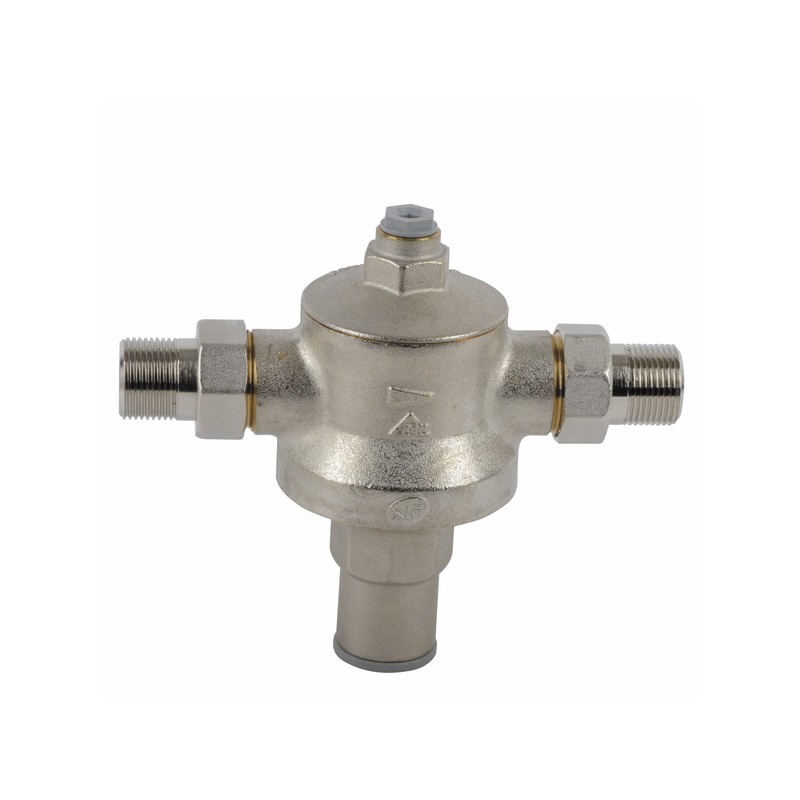

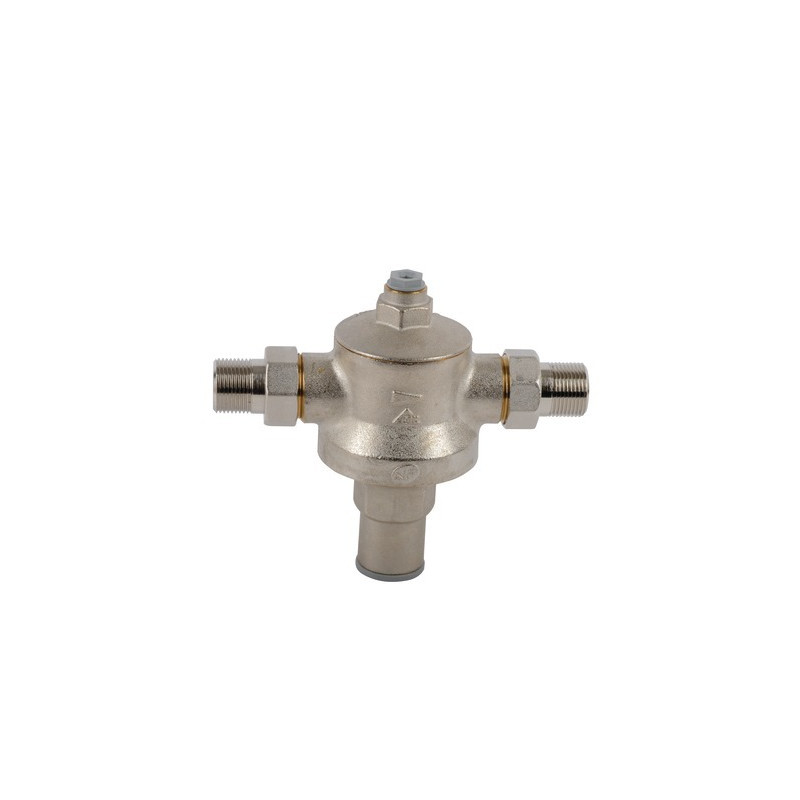

Rinox diaphragm pressure reducing valve MM 3/4"- RBM - 510510
  • Rinox diaphragm pressure reducing valve MM 3/4"- RBM - 510510
  • Rinox diaphragm pressure reducing valve MM 3/4"- RBM - 510510

Rinox diaphragm pressure reducing valve MM 3/4"- RBM - 510510

110541
€118.90

Stainless steel double seat diaphragm operation, with anti-water hammer function.

Quantity

Colissimo Delivery expected from 2026-10-13

Available

Delivery & returns
  • ✓ Free delivery on orders over €79
  • ✓ Free returns within 30 days
Find out more about terms and conditions

Pressure reducing valve in 3/4? MM, stainless steel double seat diaphragm operation, with anti-water hammer function. CHARACTERISTICS: Nickel-plated bodyStainless steel AISI 303 seal seatsNBR sealsThreaded connections MM UNI-EN-ISO 228Pressure gauge connection F 1/4?Max. upstream pressure 40 bar (16 bar in NF)Max. operating temperature 80°CFactory pre-setting 3 barSetting range 0.8 to 5.5 barCertified ACS and NF.

Features of product: RINOX DIAPHRAGM PRESSURE REDUCING VALVE MM 3/4"- RBM - 510510

Package Weight (kg)
1.8
Package Height (m)
0.09
Package Width (m)
0.165
Package Length (m)
0.185
C
97.0
Ø
M3/4"
Certification
ACS
D
78.0
DN
20.0
B
58.5
Logo Marque
RBM
Length (mm)
175.00
Norme
NF
Adjustment
0,8...5,5b
