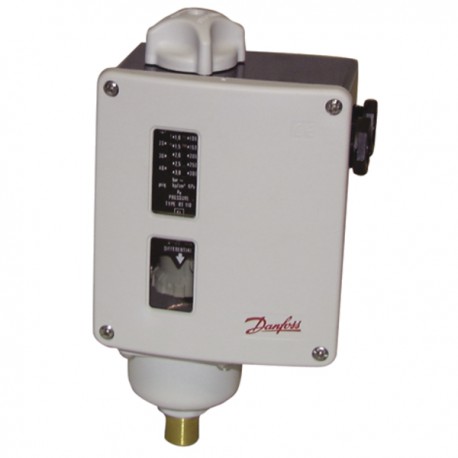

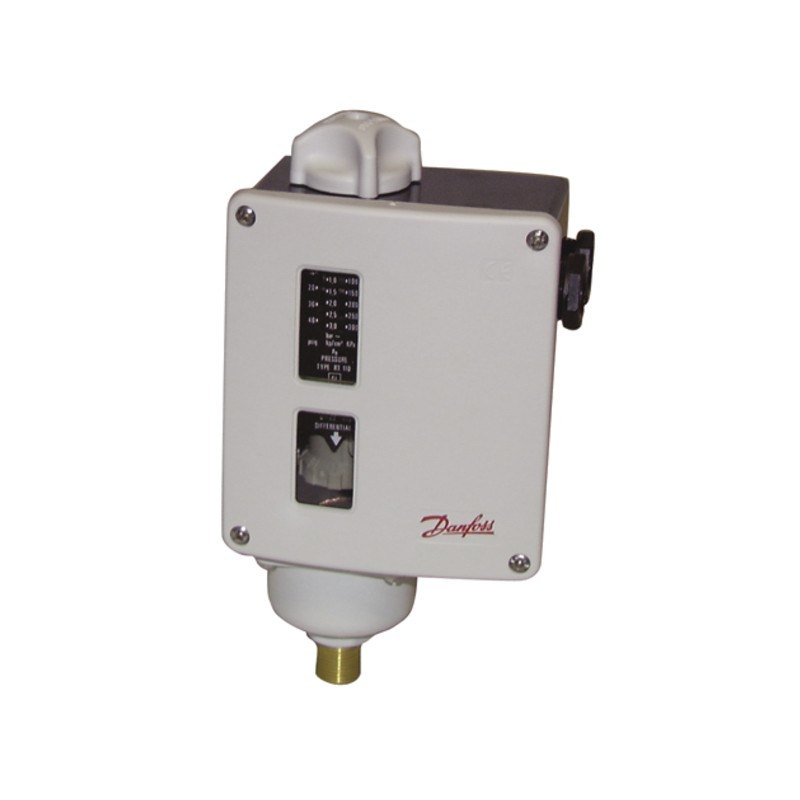

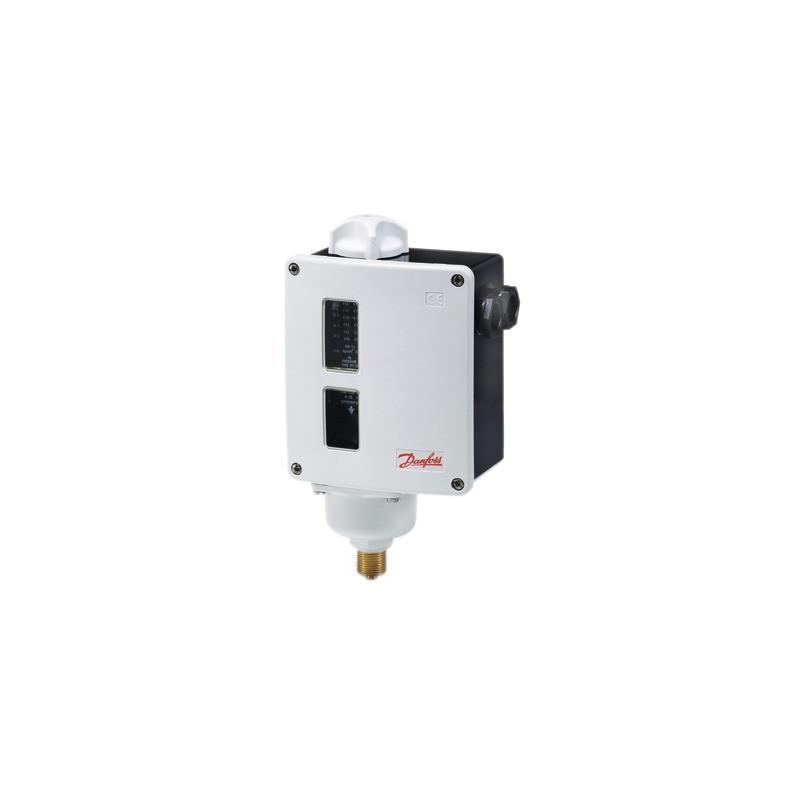

Pressure switch type rt 200 17-5237- DANFOSS - 017-523766
  • Pressure switch type rt 200 17-5237- DANFOSS - 017-523766

Pressure switch type rt 200 17-5237- DANFOSS - 017-523766

708030
€629.50

Pressure switches RT have an unipolar change-over contact controlled by pressure. The position is acording to the inlet pressure and the set point value. Used especially in industry and navy. RT range also have safety pressure switch for heating installation. FEATURES : Switch activated by a controled pressure variation. Male fitting 3/8" Cut-off power 10(4) A 400V. Range : 0,2 to 6 bar Adjusting differential : 0,25 to 1,2 bar Max working pressure : 22 bar Protection IP66 Dimensions : Height 196mm Width 110mm Deepth 74mm

Quantity

Colissimo Delivery expected from 2026-09-24

Available

Delivery & returns
  • ✓ Free delivery on orders over €79 in France
  • ✓ Free returns within 30 days
Find out more about terms and conditions

Features of product: PRESSURE SWITCH TYPE RT 200 17-5237- DANFOSS - 017-523766

Package Weight (kg)
1
Package Height (m)
0.08
Package Width (m)
0.13
Package Length (m)
0.285
Differential
0,25 à 1,2b
Max. pressure (bar)
service 22b / essai 25b
Connection
3/8"G
Adjustment
0,2 à 6 bar
Type
017-523766
