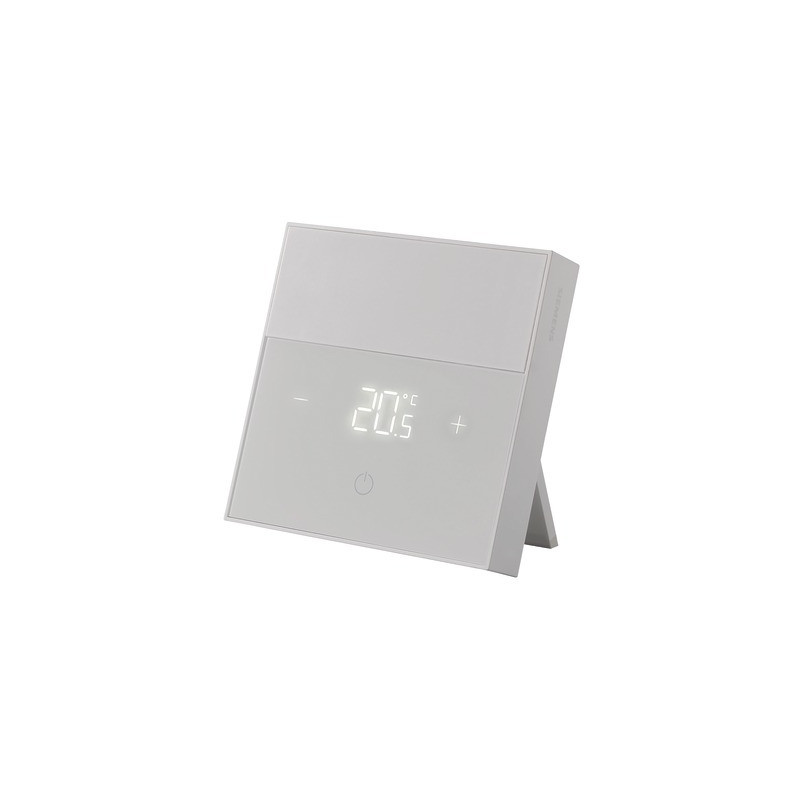

Thermostat d'ambiance Zigbee sans fil, alimenté par piles Connected Home- SIEMENS - RDZ101ZB
RDZ101ZB/SI
€145.52
Colissimo
Delivery expected from 2026-11-03
Available
Delivery & returns
- ✓ Free delivery on orders over €79
- ✓ Free returns within 30 days
Découvrez le confort ultime avec le thermostat d'ambiance sans fil RDZ101ZB de Siemens.
Sa capacité à communiquer avec le Hub Connected Home via le réseau Zigbee assure une gestion fluide et efficace de votre chauffage. La programmation via l'application mobile Connected Home rend l'utilisation intuitive et accessible, vous permettant de contrôler les aspects de votre chauffage domestique. Que ce soit pour le déclenchement de la chaudière ou la manipulation des vannes, le RDZ101ZB s'adapte parfaitement à vos besoins.
Données techniques générales :
- Tension d'alimentation : DC 3 V
- Durée de vie des piles : < 1 an
- Plage de réglage de consigne : 5...35 °C
- Elément de mesure : Capteur à résistance
- Communication : Avec Home Hub connecté via réseau Zigbee
- Type de sorties relais : Change-over contact , Potential-free
- Tension : AC 24...230 V
- Design : Capteur d'ambiance
- Fréquence radio : 2.4...2.4835 GHz MHz
- Type de fixation : montage mural avec vis
- Type de protection : IP30
- Dimensions (L x H x P) : 88 x 88 x 20.5 mm
- Couleur : Blanc
Information relative à la sécurité :
Coupez toujours l'alimentation électrique de la charge avant toute intervention. En cas de doute, faites appel à un électricien qualifié.
Features of product: THERMOSTAT D'AMBIANCE ZIGBEE SANS FIL, ALIMENTÉ PAR PILES CONNECTED HOME- SIEMENS - RDZ101ZB
- Package Weight (kg)
- 0.22
- Package Height (m)
- 0.06
- Package Width (m)
- 0.09
- Package Length (m)
- 0.095
- Number
- 1
- Origin
- Fabriqué en France
The Keys to Siemens Regulation: From Sensor to Actuator
In building management systems (BMS), Siemens components are essential for automation. A high-performance system relies on seamless communication between the measuring device and the control element.
1. Siemens Thermostat: Measurement and Comfort
The Siemens thermostat is the dialogue point between the user and the heating system. It is not just used to display the temperature but also to finely control heating, often through sophisticated protocols.
We provide wired or wireless programmable room thermostats, essential for managing independent heating zones and optimizing time slots. Choosing the right model ensures precise settings (+/- 0.5°C), directly translating into savings.
2. Siemens Actuator: Action and Efficiency
The Siemens actuator is the hydraulic actuator. Its role is to precisely position valves (mixing valves or zone valves) in order to control the flow of hot water to a given circuit.
As the centerpiece of the heating zone, it must be fully compatible with the regulation electronics (0-10V signal, 3 points) and the valve it is mounted on. Replacing a faulty actuator allows for immediate restoration of optimal control over the water mix (supply/return) and avoids unnecessary overheating.
Advice for Identification and Compatibility
With Siemens' extensive and highly technical range, it is vital to check the specifications of the part to be replaced:
-
Product reference: Always rely on the 7 or 8 character code on the label (e.g., RDE10.1). This code determines the function, voltage, and communication protocol.
-
For Actuators: Check the power (torque) and stroke duration (opening/closing time) to ensure it can move your valve.
Expert Tip: When replacing a Siemens thermostat or a Siemens actuator, check the configuration of the dip switches or the initial programming. Incorrect calibration of the zero point or end stroke can lead to malfunctions, even if the part is new.
Ensure the reliability of your regulation system with ExpertByNet, the specialist in Siemens components for HVAC.
