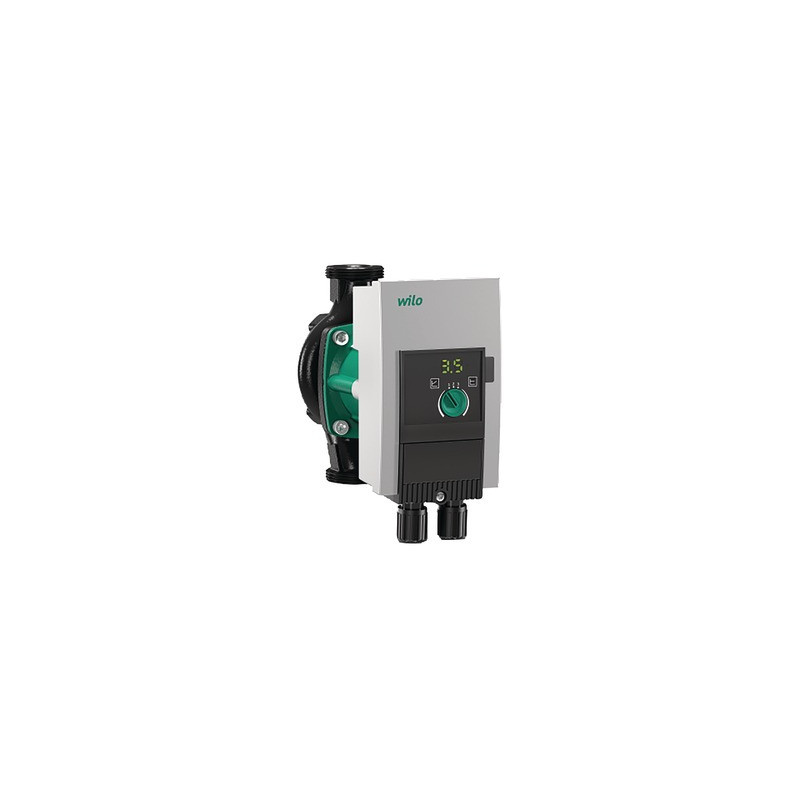

Circulating pump Yonos MAXO 30/0,5-10 pn10- WILO - 2120643
2120643/WI
€1,736.41
yonos maxo 30/0,5-10 pn10
Colissimo
Delivery expected from 2026-09-24
Available
Delivery & returns
- ✓ Free delivery on orders over €79 in France
- ✓ Free returns within 30 days
Yonos MAXO high-efficiency pump with electronic speed control.
Application: Canned circulation pump, synchronous motor featuring ECM technology and integrated electronic power control for continuous differential pressure regulation.
Suitable for all heating, ventilation and air conditioning applications.
Features and benefits:
Fitted as standard with:
- Pre-selectable control types for optimum load management: Delta p-c (constant differential pressure), Delta p-v (variable differential pressure)
- 3 speeds (n = constant)
- LED display for setpoint definition and error message display
- Electrical connection with a Wilo plug
- Fault indicator and contact for centralised fault reporting
Max. working pressure : 10 bar
Liquid temperature range: -20°C - 110°C
Ambient temperature range: -20°C - 40°C
Pump/impeller material: Grey cast iron /PPE/PS-GF30
Protection rating: IPX4D
Safety information:
To protect yourself against electrical hazards, ensure that the unit power supply is switched off before performing any work. If in doubt, do not risk installing it incorrectly: Seek advice from a qualified professional, such as an electrician.
Features of product: CIRCULATING PUMP YONOS MAXO 30/0,5-10 PN10- WILO - 2120643
- Package Weight (kg)
- 5
- Package Height (m)
- 0.28
- Package Width (m)
- 0.22
- Package Length (m)
- 0.28
- Thread size
- 2" (50x60)
- Ø
- M2"
- DN
- 30.0
- Power Supply / Voltage
- 230 V
- Center-to-Center Distance (mm)
- 180
- Insulation
- F
- Garantie
- 3
- Logo Marque
- WILO
- Number
- 1
- PN (bar)
- 10
- Protection
- IP4XD
- Product type
- Circulateur
The Wilo brand is globally recognized for its high-quality and performance-driven circulation pumps and pumping systems. Designed for domestic or tertiary use, the Wilo range meets the strictest requirements for heating, air conditioning, water supply, and wastewater disposal.
On Expertbynet, we offer a wide selection of Wilo pumps and circulators suitable for all types of installations. Whether you are looking for a circulator for your central heating, a pump for boosting pressure, or equipment for sanitation, you will find reliable, compact, and energy-efficient models.
Wilo products stand out for their robustness, ease of installation, and advanced technology. With their high-efficiency motors, these devices help reduce your home's energy consumption while ensuring quiet and durable operation.
By ordering from Expertbynet, you benefit from a carefully curated selection of Wilo products for individuals, fast delivery, and professional assistance in choosing your parts. Our detailed product sheets allow you to easily compare models and select the equipment best suited to your installation.
Trust Expertbynet to equip your installation with the best hydraulic solutions from Wilo. A trusted brand for optimal thermal comfort, both summer and winter.
