Delta dore thermostat thermostat tybox 33- DELTA DORE - 6053002
  • Delta dore thermostat thermostat tybox 33- DELTA DORE - 6053002

Delta dore thermostat thermostat tybox 33- DELTA DORE - 6053002

656187
€210.54
Wireless room thermostat with selector dial for boiler or non-reversible heat pump - transmitter + RF receiver Simp licity Range 5 Years warranty Intuitive to use thanks to the selector dial: Choice of operating modes: Comfort, Reduced, Frost Protection, Offr Room temperature and temperature setting display large backlit screen Dimensions (mm) : 104 X 80 X D 35 Can be installed away from the boiler in the most suitable room for taking the temperature, thanks to the wireless technology (150m) Prevents handling errors thanks to the settings lock function Power supply of the room unit: 2 LR03 batteries (supplied) Life time of the batteries 2 years Power supply of the receiver: 230 V Length of the receiver cable: 2 m. Dry contact output: 5 A/230V Radio freq
Quantity

Colissimo Delivery expected from 2026-10-27

Available

Delivery & returns
  • ✓ Free delivery on orders over €79
  • ✓ Free returns within 30 days
Find out more about terms and conditions

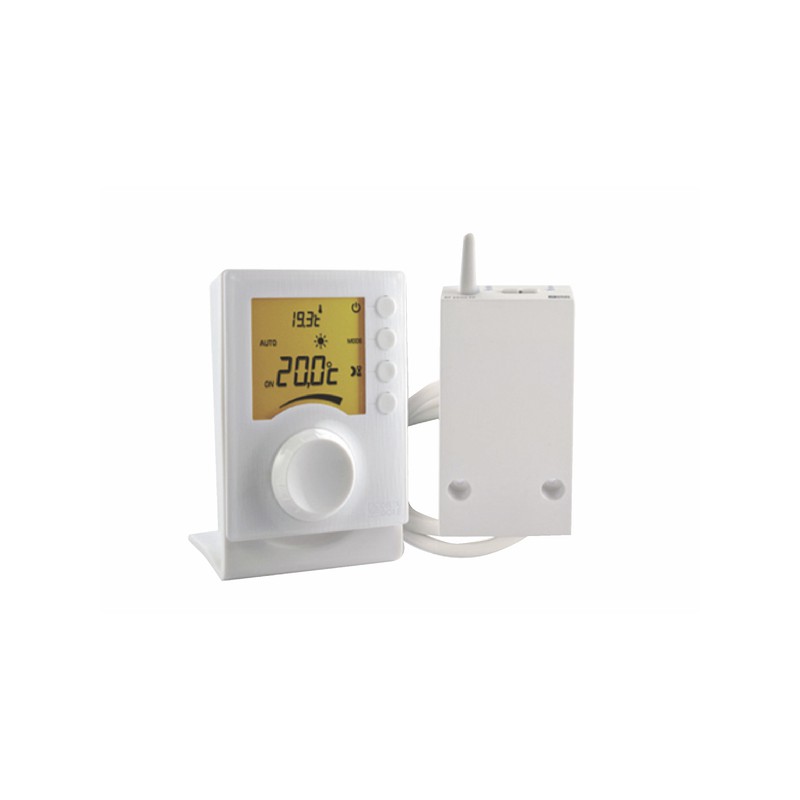

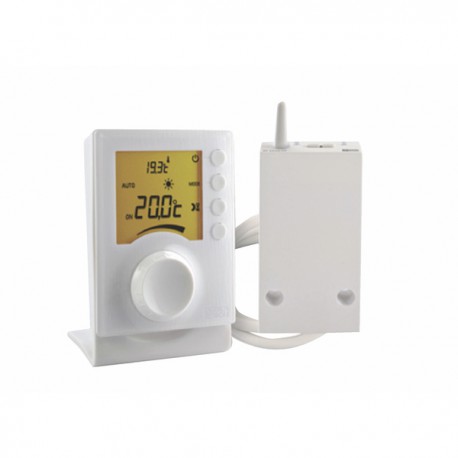

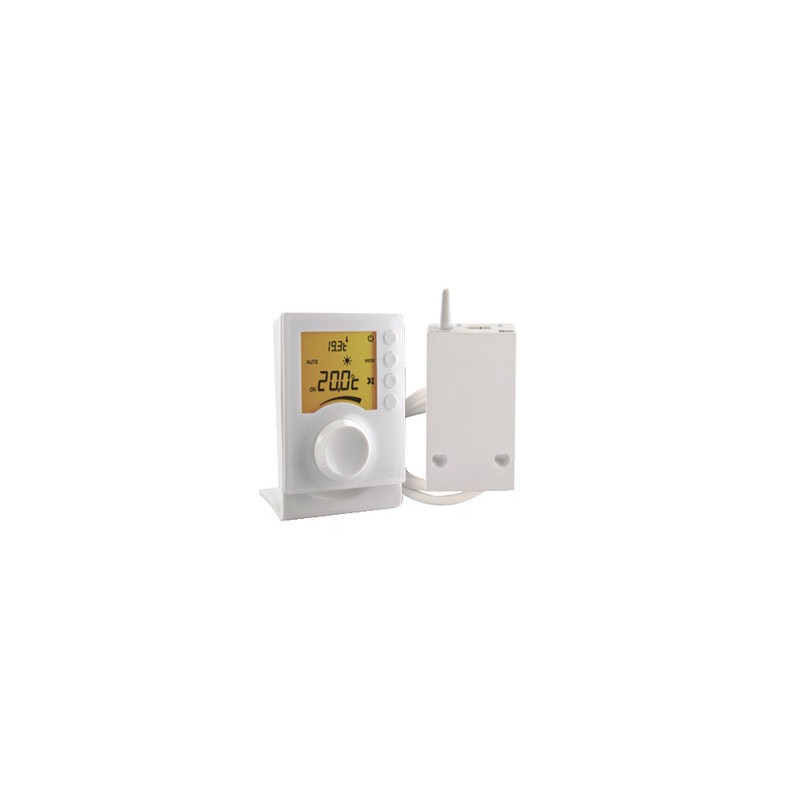

Wireless room thermostat with selector dial for boiler or non-reversible heat pump - transmitter + RF receiver
Simp licity Range
Intuitive to use thanks to the selector dial:
Choice of operating modes: Comfort, Reduced, Frost Protection, Offr
Room temperature and temperature setting display
large backlit screen
Dimensions (mm) : 104 X 80 X D 35
Can be installed away from the boiler in the most suitable room for taking the temperature, thanks to the wireless technology (150m)
Prevents handling errors thanks to the settings lock function
Power supply of the room unit: 2 LR03 batteries (supplied)
Life time of the batteries 2 years
Power supply of the receiver: 230 V
Length of the receiver cable: 2 m.
Dry contact output: 5 A/230V
Radio frequency: 868 MHz
Control range from 5° to 30°C
Protection index : IP 30
Insulation class : Class II

Features of product: DELTA DORE THERMOSTAT THERMOSTAT TYBOX 33- DELTA DORE - 6053002

Package Weight (kg)
0.483
Package Height (m)
0.15
Package Width (m)
0.075
Package Length (m)
0.155
Garantie
5
Logo Marque
DELTA_DORE
Matière
PLASTIQUE

Delta Dore Thermostats: Reliable Control for Your Heating

A thermostat is not just a simple accessory: it is the device that regulates temperature, comfort stability, and the operational logic of your heating system. When regulation is inaccurate, the consequences are immediate: temperature fluctuations, short generator cycles, unnecessary consumption, and accelerated wear of certain components.

Delta Dore thermostats are designed to ensure stable and consistent regulation suited to the constraints of residential installations, whether it’s a boiler, a heat pump, or a multi-zone system. A compatible part can restore reliable control without modifying the existing installation, as long as the electrical characteristics and type of control are adhered to.

Key Elements for Effective Regulation

Depending on your setup (central heating, pilot wire, dry contact, radio), the components to check or replace may differ. Here are the most critical elements to bring your regulation back to the correct level:

  • Room thermostats (wired or wireless): they measure the temperature and control the generator. In case of drift, erratic display, or unstable regulation, the thermostat is often at fault.

  • Receivers / control modules: they ensure the connection between the thermostat and the equipment (boiler, heat pump, zone). A faulty module can cause inconsistent commands (permanent heating or lack of heating).

  • Probes and sensors: depending on the installations, an indoor or outdoor probe influences regulation. A defective sensor can skew measurement and disrupt heating cycles.

How to Identify the Right Delta Dore Reference?

Many thermostats and receivers look alike, but their technical specifications differ: type of control (dry contact, pilot wire), radio protocol, boiler/heat pump compatibility, power supply, or multi-zone management. A visually similar reference may be functionally incompatible.

To avoid any errors, precisely identify:

  • The exact reference of the thermostat and/or receiver (product label or documentation).

  • The type of installation: boiler, heat pump, single zone or multi-zones.

  • The mode of control: wired, wireless, pilot wire, dry contact.

Technical advice: before replacement, check functional compatibility (type of control, power supply, protocol). Well-suited regulation limits short cycles, stabilizes temperature, and enhances the durability of the installation.
