Heating controller for 2 heating circuits and d.h.w.- SIEMENS - RVP360
  • Heating controller for 2 heating circuits and d.h.w.- SIEMENS - RVP360

Heating controller for 2 heating circuits and d.h.w.- SIEMENS - RVP360

RVP360/SI
€1,411.10
Quantity

Colissimo Delivery expected from 2026-09-24

Available

Delivery & returns
  • ✓ Free delivery on orders over €79 in France
  • ✓ Free returns within 30 days
Find out more about terms and conditions

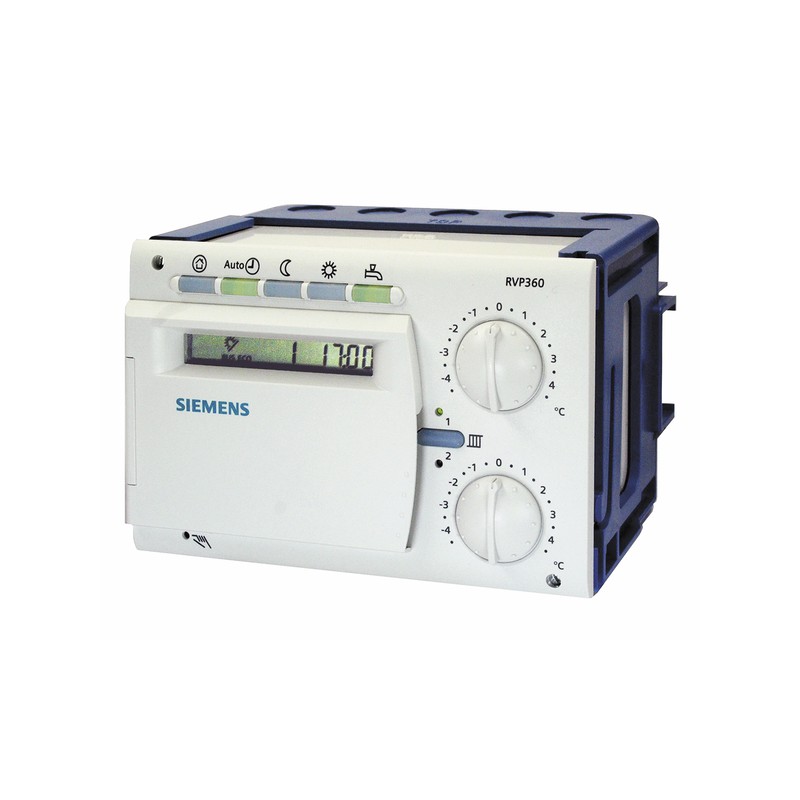

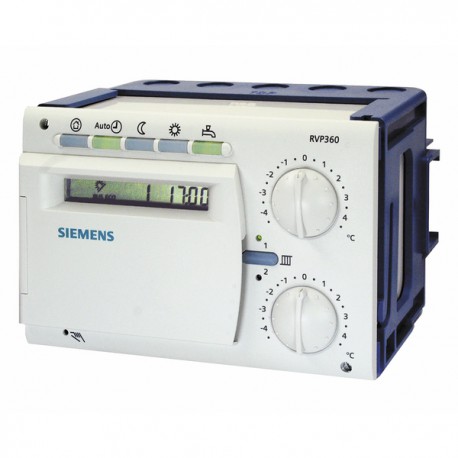

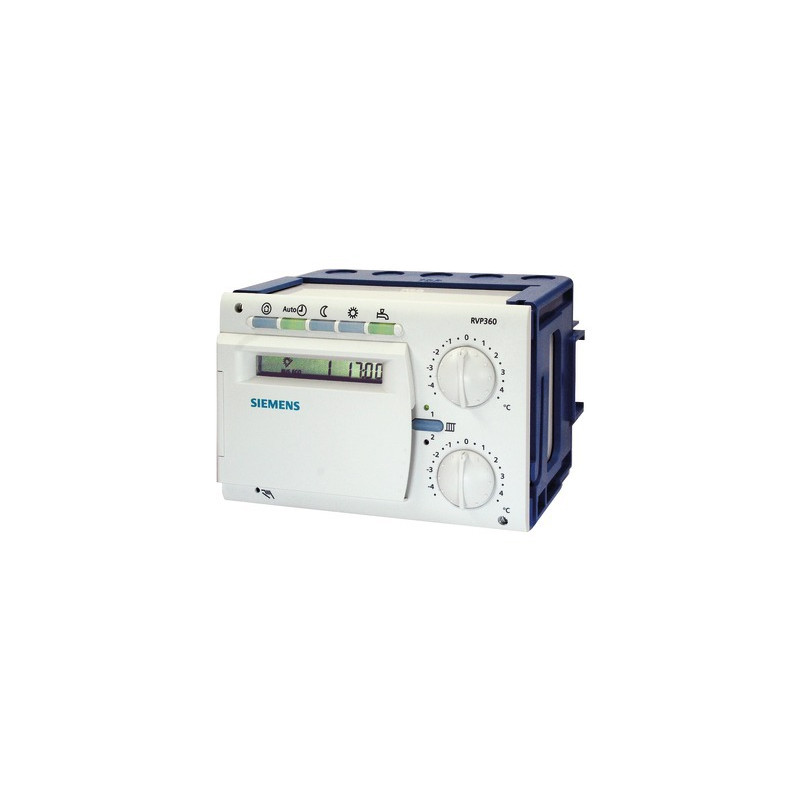

The Siemens RVP360 controller

This digital controller (for two heating circuits: boiler and domestic hot water) allows the flow temperature to be adjusted according to the outside temperature, with or without room temperature compensation.

This device offers a number of benefits:

  • Adjustable heating curve gradient.
  • Progressive valve action with a 3-point or thermal motor.
  • 2-speed burner control.
  • Possible to set maximum initial temperature
  • Domestic hot water production via a booster pump, with or without solar top-up, in accordance with RT2012.
  • Annual timer with holiday programme.

Features of the RVP360 controller

6 pre-programmed applications:
  • 2 controlled circuits (radiators or underfloor heating)
  • Boiler control + 2 circuits
  • 2 circuits + domestic hot water supply, with or without solar top-up
  • Boiler control + 2 DHW circuits with or without solar top-up
  • Boiler control + 1 direct circuit + 1 controlled circuit
  • 1 direct circuit + 1 controlled circuit + DHW production with or without solar top-up.
Details of RVP360:
  • Power supply: 230V AC
  • Consumption: 8 VA
  • Analogue inputs: 1x LG-Ni1000, NTC 575
  • Breaking voltage, relay output: 24 - 230V AC
  • Breaking current, relay output: 2x2(2)A and 9x1(1)A
  • Dimensions (LxHxW): 144 × 96 × 109 mm
  • Installed on DIN rail

Safety information:
The installation and use of heating system control components must be done in accordance with the manufacturer’s instructions and by a qualified professional. Incorrect installation or adjustment may lead to malfunctions, excessive energy consumption or safety risks. Keep this appliance out of the reach of children and ensure that you comply with the applicable safety standards.

Features of product: HEATING CONTROLLER FOR 2 HEATING CIRCUITS AND D.H.W.- SIEMENS - RVP360

Package Weight (kg)
0.882
Package Height (m)
0.1
Package Width (m)
0.15
Package Length (m)
0.17
Number
1

The Keys to Siemens Regulation: From Sensor to Actuator

In building management systems (BMS), Siemens components are essential for automation. A high-performance system relies on seamless communication between the measuring device and the control element.

1. Siemens Thermostat: Measurement and Comfort

The Siemens thermostat is the dialogue point between the user and the heating system. It is not just used to display the temperature but also to finely control heating, often through sophisticated protocols.

We provide wired or wireless programmable room thermostats, essential for managing independent heating zones and optimizing time slots. Choosing the right model ensures precise settings (+/- 0.5°C), directly translating into savings.

2. Siemens Actuator: Action and Efficiency

The Siemens actuator is the hydraulic actuator. Its role is to precisely position valves (mixing valves or zone valves) in order to control the flow of hot water to a given circuit.

As the centerpiece of the heating zone, it must be fully compatible with the regulation electronics (0-10V signal, 3 points) and the valve it is mounted on. Replacing a faulty actuator allows for immediate restoration of optimal control over the water mix (supply/return) and avoids unnecessary overheating.

Advice for Identification and Compatibility

With Siemens' extensive and highly technical range, it is vital to check the specifications of the part to be replaced:

  • Product reference: Always rely on the 7 or 8 character code on the label (e.g., RDE10.1). This code determines the function, voltage, and communication protocol.

  • For Actuators: Check the power (torque) and stroke duration (opening/closing time) to ensure it can move your valve.

Expert Tip: When replacing a Siemens thermostat or a Siemens actuator, check the configuration of the dip switches or the initial programming. Incorrect calibration of the zero point or end stroke can lead to malfunctions, even if the part is new.

Ensure the reliability of your regulation system with ExpertByNet, the specialist in Siemens components for HVAC.
