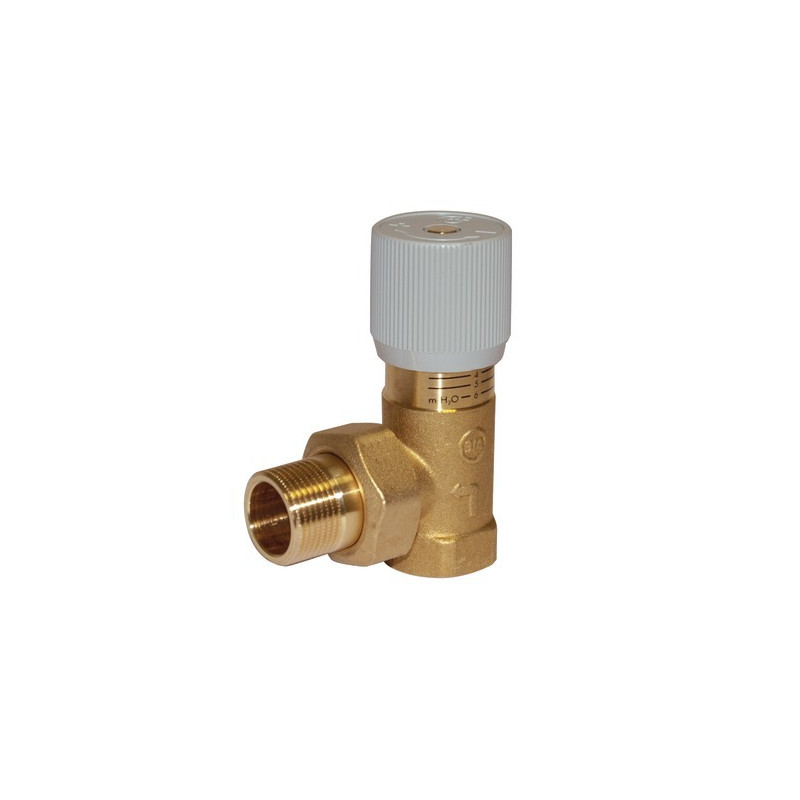

Water pressure reducer differential mf3/4"- DIFF - 100021
  • Water pressure reducer differential mf3/4"- DIFF - 100021

Water pressure reducer differential mf3/4"- DIFF - 100021

100021
€82.83

FUNCTION Differential discharge valve opens establishing a inlet/outlet by-pass during the valves closing. Circulator doesn't force and deletes installation noises. Brass body Ethylene propylene gasket. Stainless steel spring Plastic lever reinforced. Differential adjustment 0,1 to 0,6 bar Square ConnectionMF3/4" Max pressure 10 bars 46kW Dimensions : H 105mm L 75mm x 38mm Max Temperature 110°C

Quantity

Colissimo Delivery expected from 2026-10-16

Available

Delivery & returns
  • ✓ Free delivery on orders over €79
  • ✓ Free returns within 30 days
Find out more about terms and conditions

FUNCTIONDifferential discharge valve opens establishing a inlet/outlet by-pass during the valves closing.Circulator doesn't force and deletes installation noises.Brass bodyEthylene propylene gasket.Stainless steel springPlastic lever reinforced.Differential adjustment 0,1 to 0,6 barSquare ConnectionMF3/4"Max pressure 10 bars 46kWDimensions : H 105mmL 75mm x 38mm Max Temperature 110°C

Features of product: WATER PRESSURE REDUCER DIFFERENTIAL MF3/4"- DIFF - 100021

Package Weight (kg)
0.431
Package Height (m)
0.045
Package Width (m)
0.08
Package Length (m)
0.115
Ø
MF 3/4"
Pressure (bar)
10
Connection
MF3/4"
Product type
Soupape
