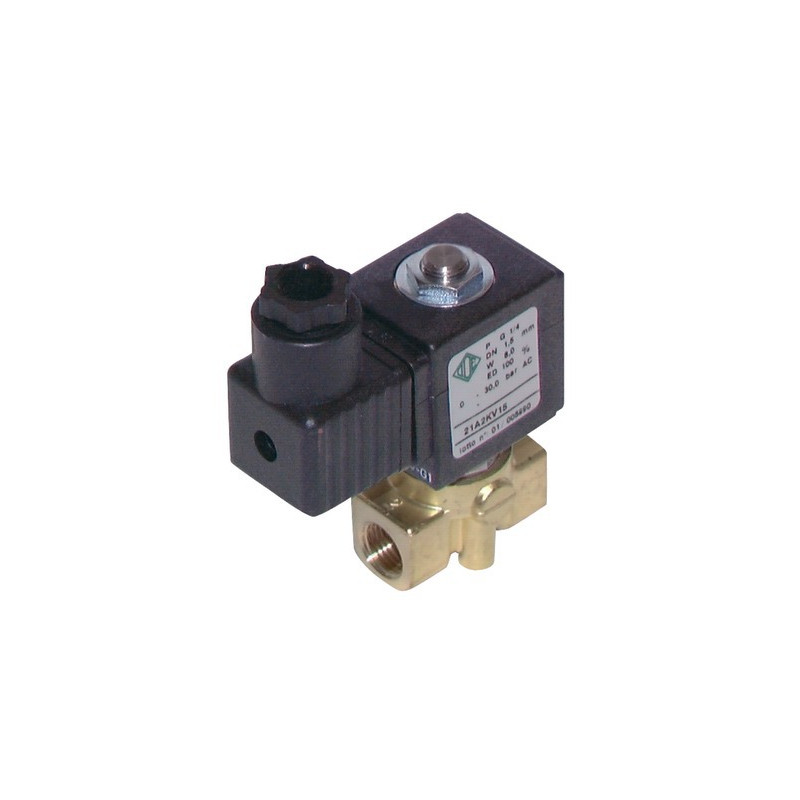

Solenoid valve type ode d1012-016 ff3/4"- DIFF - 103012
103012
€269.78
For WATER - AIR - FUEL et OIL NORMAL USE HIGH FLOW Brass body Stainless steel internal parts Valve with a VITON gasket Supplied with coil 220VAC and steerable connector.
Colissimo
Delivery expected from 2026-09-24
Available
Delivery & returns
- ✓ Free delivery on orders over €79 in France
- ✓ Free returns within 30 days
Brass body
Internal parts made of stainless steel
Valve fitted with a VITON seal
Supplied with a 230V AC coil and a swivel connector.
Accessories:
FOR TYPE D10XX-XXX
- 103051 = Replacement coil for solenoid valve BSOD 230V AC
- 103050 = Replacement coil for solenoid valve BSOD 24V AC
- 103056 = Replacement coil for solenoid valve BSOD 24V DC
- 103055 = Replacement coil for solenoid valve BSOD 12V DC
FOR TYPE D20XX-XXX
- 103052 = Replacement coil for solenoid valve BSOD 24V AC
- 103054 = Replacement coil for solenoid valve BSOD 24V DC
- 105435 = EV-M14-M16 series non-rectified plug-in connector
Features of product: SOLENOID VALVE TYPE ODE D1012-016 FF3/4"- DIFF - 103012
- Package Weight (kg)
- 0.707
- Package Height (m)
- 0.06
- Package Width (m)
- 0.095
- Package Length (m)
- 0.125
- Ø
- F3/4''
- Dimensions (mm)
- 70x100
- Kv (m³/h)
- 2.4
- Length (mm)
- 103.00
- Pressure range (mbar)
- 0 / 14
- Range °C
- -30/90
- Type
- D1012-016
- Product type
- Electrovanne
