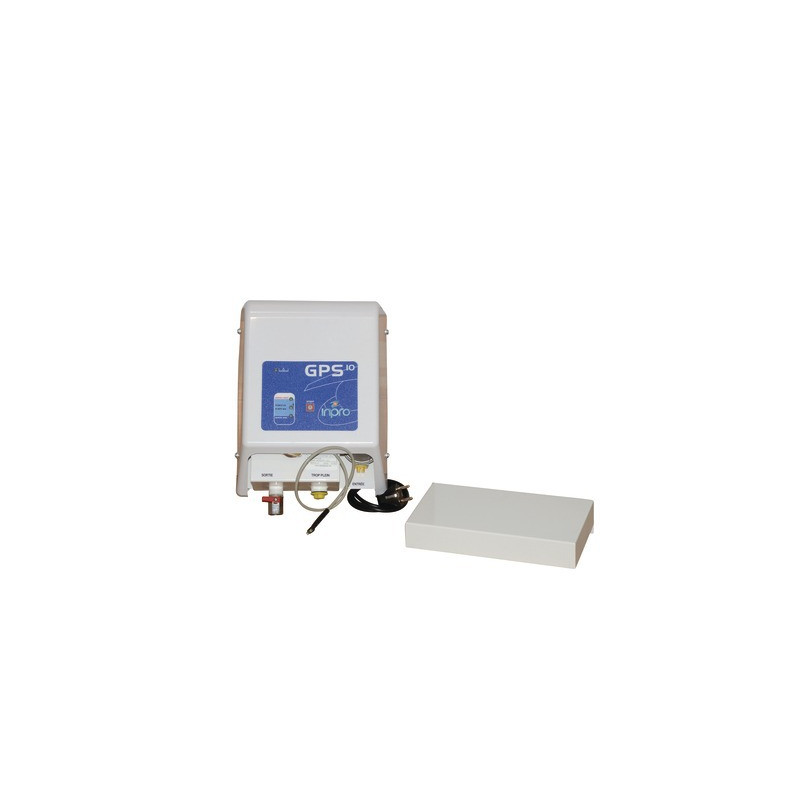

Pump suction type gps10 tank 3,5l- INPRO - 309000

INPRO 20000000000100 piston suction pump

Fuel oil is supplied by gravity from the GPS tank; therefore, the GPS must be positioned close to the point(s) of consumption. The GPS10 can easily be converted into an overflow safety pump using the collection tray, which can be fitted on request. This device detects any potential overflow from the GPS10 tank if the overflow pipe cannot be connected to the return pipe leading to the main fuel oil tank.

Technical specifications for INPRO 20000000000100

• Single-phase 230V 50 Hz
• Flow: 8 litres/hour with 8 m vertical and 25 m horizontal
• Tray capacity: 3.5 litres
• Overflow connection: F1/2"
• Inlet and outlet fittings F3/8"
• Dimensions:
  • Height: 300mm
  • Width: 240 mm
  • Depth: 125 mm
  • Weight: 3 kg

Installing the GPS 10

1. Connect the suction pipe from the main tank to the filter and the inlet pipe to the outlet of the appliance
2. Connect the GPS 10 to the mains supply
3. Press and hold the power button to start automatic operation. The pump may make noise while the fuel is flowing into it
4. Once the tank is full of fuel oil, the operating level switch switches the pump off automatically
5. The GPS 10 is ready for use

Advice from our experts

Clean the filter and the strainer regularly

Safety information:
To protect yourself against electrical hazards, ensure that the unit power supply is switched off before performing any work. If in doubt, do not risk installing it incorrectly: Seek advice from a qualified professional, such as an electrician.
