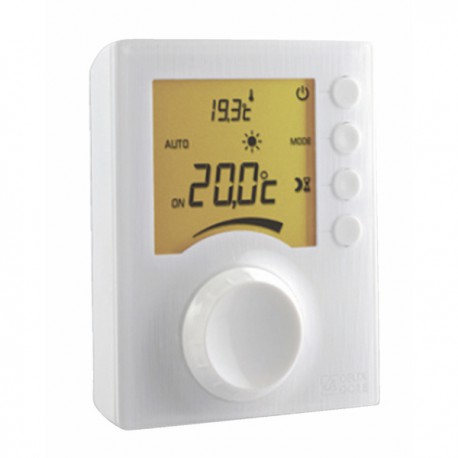

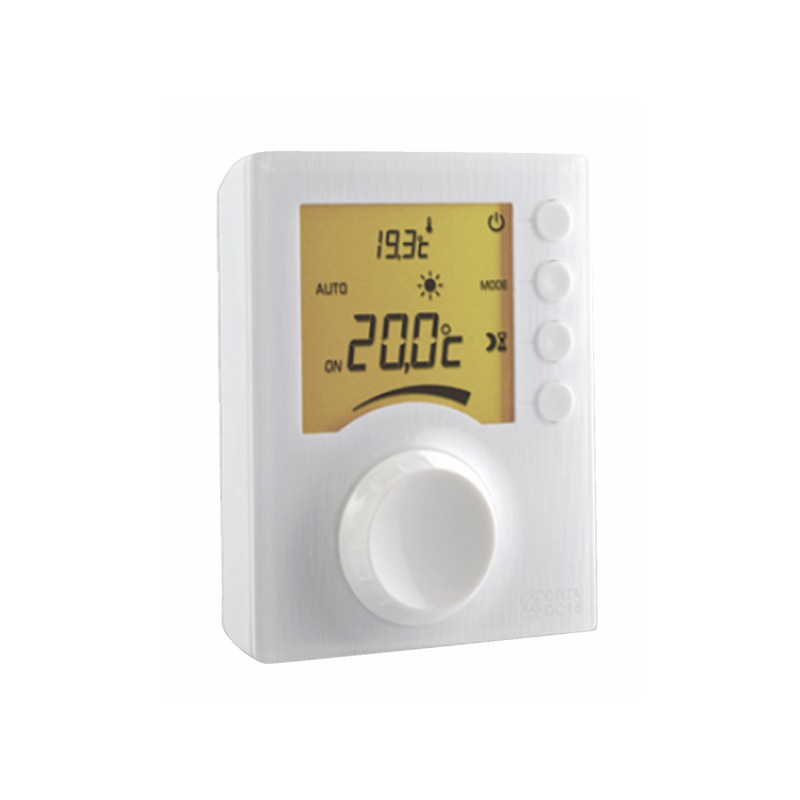

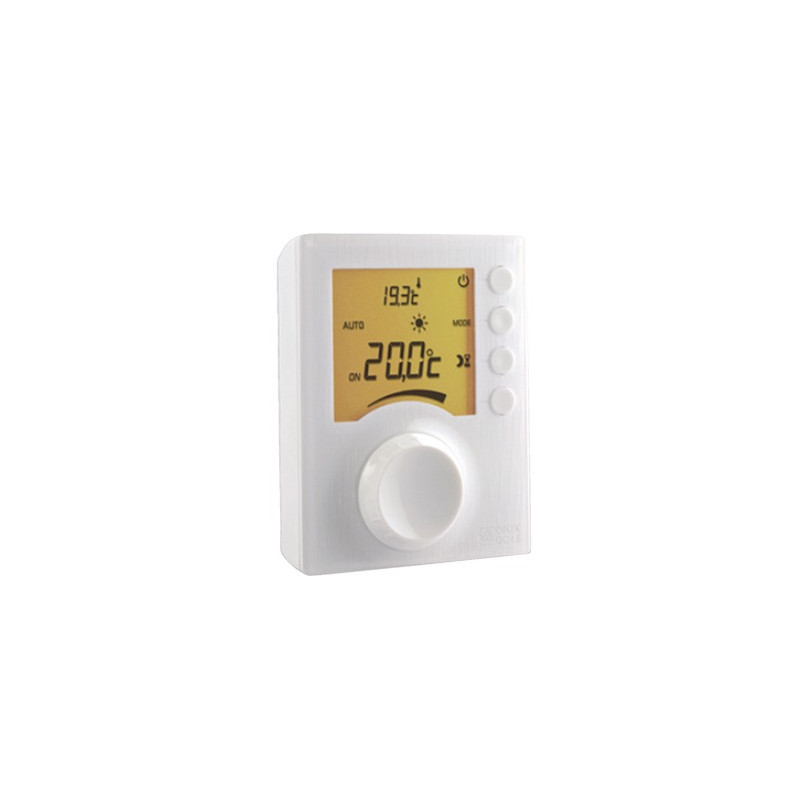

Delta dore thermostat thermostat tybox 31- DELTA DORE - 6053001
  • Delta dore thermostat thermostat tybox 31- DELTA DORE - 6053001

Delta dore thermostat thermostat tybox 31- DELTA DORE - 6053001

656186
€94.50
Hard-wired room thermostat with selector dial for boiler or non-reversible heat pump 5 Years Warranty Simplicity Range Intuitive to use thanks to the selector dial: precise temperature setting Choice of operating modes: Comfort, Reduced, Frost Protection, Off Room temperature and temperature setting display from 5°C to 30°C Time and temperature settings override for special circumstances Calibration of the temperature sensor Elegant design with large backlit screen Prevents handling errors thanks to the settings lock function Power supply of the room unit: 2 LR03 batteries (supplied) Lifetime of the batteries : 2 years Change-over dry contact output: 2 A/230V Control range from 5° to 30°C Regulation base time can be set Dimensions: H 104 x L 80 x D 35 mm Prot
Quantity

Colissimo Delivery expected from 2026-09-24

Available

Delivery & returns
  • ✓ Free delivery on orders over €79 in France
  • ✓ Free returns within 30 days
Find out more about terms and conditions
Hard-wired room thermostat with selector dial for boiler or non-reversible heat pump
5 Years Warranty
Simplicity Range
Intuitive to use thanks to the selector dial: precise temperature setting
Choice of operating modes: Comfort, Reduced, Frost Protection, Off
Room temperature and temperature setting display from 5°C to 30°C Time and temperature settings override for special circumstances

Calibration of the temperature sensor Elegant design with large backlit screen
Prevents handling errors thanks to the settings lock function
Power supply of the room unit: 2 LR03 batteries (supplied)
Lifetime of the batteries : 2 years
Change-over dry contact output: 2 A/230V
Control range from 5° to 30°C
Regulation base time can be set
Dimensions: H 104 x L 80 x D 35 mm
Protection index : IP 30
Insulation class : Class II

Features of product: DELTA DORE THERMOSTAT THERMOSTAT TYBOX 31- DELTA DORE - 6053001

Package Weight (kg)
0.2
Package Height (m)
0.145
Package Width (m)
0.045
Package Length (m)
0.09
Garantie
5
Logo Marque
DELTA_DORE

Delta Dore Thermostats: Reliable Control for Your Heating

A thermostat is not just a simple accessory: it is the device that regulates temperature, comfort stability, and the operational logic of your heating system. When regulation is inaccurate, the consequences are immediate: temperature fluctuations, short generator cycles, unnecessary consumption, and accelerated wear of certain components.

Delta Dore thermostats are designed to ensure stable and consistent regulation suited to the constraints of residential installations, whether it’s a boiler, a heat pump, or a multi-zone system. A compatible part can restore reliable control without modifying the existing installation, as long as the electrical characteristics and type of control are adhered to.

Key Elements for Effective Regulation

Depending on your setup (central heating, pilot wire, dry contact, radio), the components to check or replace may differ. Here are the most critical elements to bring your regulation back to the correct level:

  • Room thermostats (wired or wireless): they measure the temperature and control the generator. In case of drift, erratic display, or unstable regulation, the thermostat is often at fault.

  • Receivers / control modules: they ensure the connection between the thermostat and the equipment (boiler, heat pump, zone). A faulty module can cause inconsistent commands (permanent heating or lack of heating).

  • Probes and sensors: depending on the installations, an indoor or outdoor probe influences regulation. A defective sensor can skew measurement and disrupt heating cycles.

How to Identify the Right Delta Dore Reference?

Many thermostats and receivers look alike, but their technical specifications differ: type of control (dry contact, pilot wire), radio protocol, boiler/heat pump compatibility, power supply, or multi-zone management. A visually similar reference may be functionally incompatible.

To avoid any errors, precisely identify:

  • The exact reference of the thermostat and/or receiver (product label or documentation).

  • The type of installation: boiler, heat pump, single zone or multi-zones.

  • The mode of control: wired, wireless, pilot wire, dry contact.

Technical advice: before replacement, check functional compatibility (type of control, power supply, protocol). Well-suited regulation limits short cycles, stabilizes temperature, and enhances the durability of the installation.
