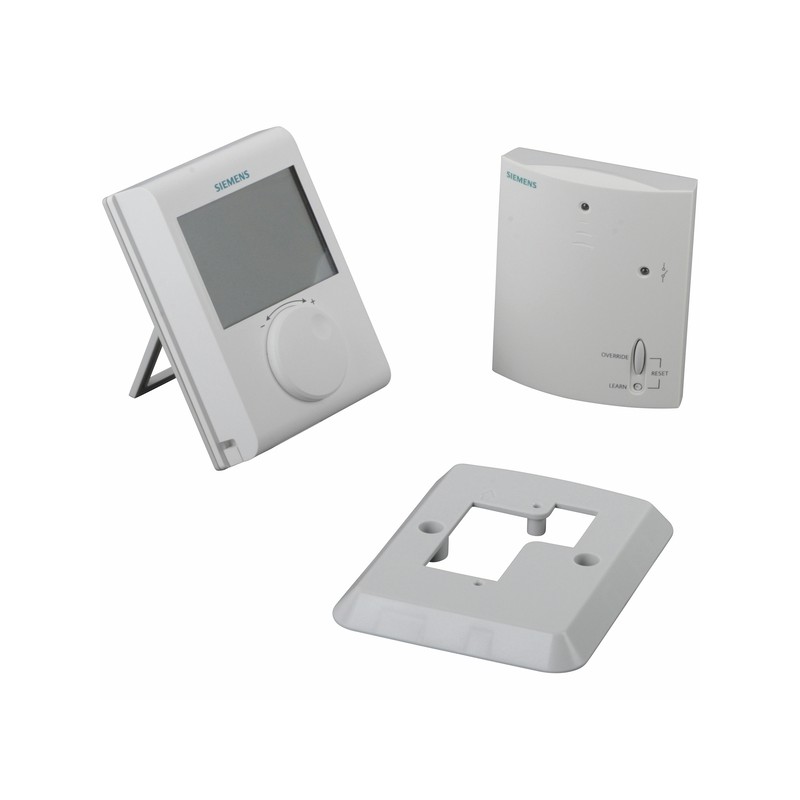

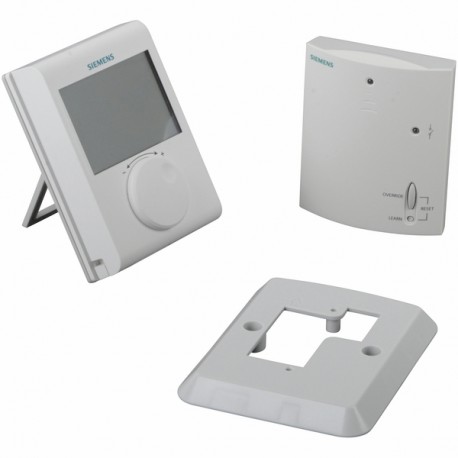

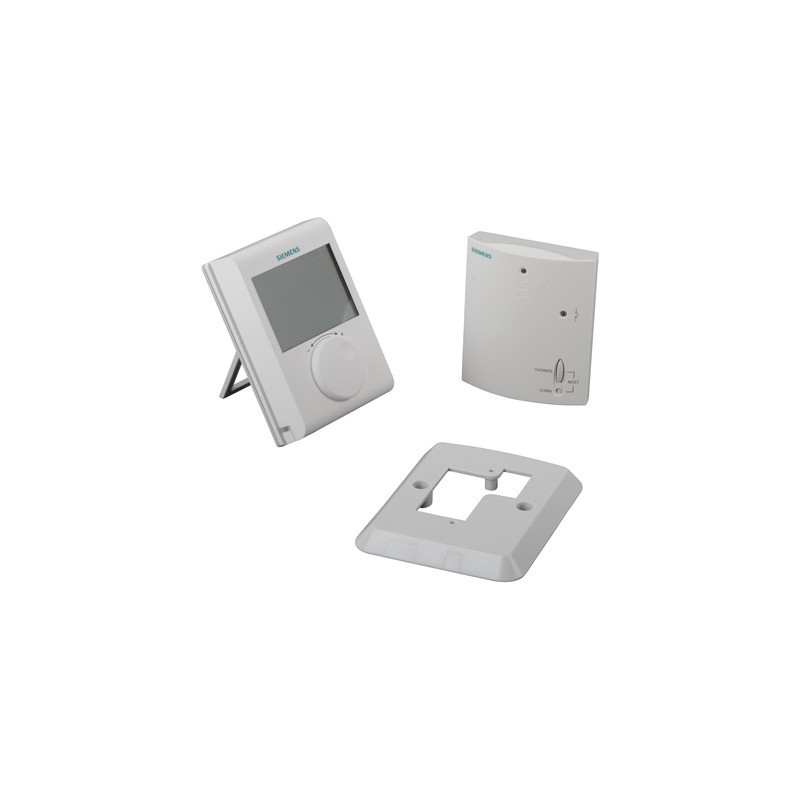

Wireless thermostat, battery operated- SIEMENS - RDH100RF/SET
  • Wireless thermostat, battery operated- SIEMENS - RDH100RF/SET

Wireless thermostat, battery operated- SIEMENS - RDH100RF/SET

RDH100RF/SET/SI
€102.65

Wireless + radio room heating thermostat, Supply voltage: 2x1.5V AAA batteries provided, Relay output type: Inverter contact, potential-free, Set value: 5?30°C, LCD display

Quantity

Colissimo Delivery expected from 2026-09-24

Available

Delivery & returns
  • ✓ Free delivery on orders over €79 in France
  • ✓ Free returns within 30 days
Find out more about terms and conditions

RDH100: the thermostat from Siemens
This Siemens designed room thermostat has a display capable of displaying the room temperature, the chosen comfort temperature, the heating demand and the condition of the batteries (2 1.5V AA batteries). There is a selection button located at the bottom, to access the various parameters of the RDH100 thermostat. The unit can be used with valves STA23, STP23 and SFA21 from Siemens.
Characteristics of the RDH100 thermostat

All or nothing wired thermostat
Temperature range: 5 to 30°C
Pre-programmed comfort temperature: 20°C
Weight: 350g
Colour: White RAL9003

Features of product: WIRELESS THERMOSTAT, BATTERY OPERATED- SIEMENS - RDH100RF/SET

Package Weight (kg)
0.532
Package Height (m)
0.066
Package Width (m)
0.15
Package Length (m)
0.198

The Keys to Siemens Regulation: From Sensor to Actuator

In building management systems (BMS), Siemens components are essential for automation. A high-performance system relies on seamless communication between the measuring device and the control element.

1. Siemens Thermostat: Measurement and Comfort

The Siemens thermostat is the dialogue point between the user and the heating system. It is not just used to display the temperature but also to finely control heating, often through sophisticated protocols.

We provide wired or wireless programmable room thermostats, essential for managing independent heating zones and optimizing time slots. Choosing the right model ensures precise settings (+/- 0.5°C), directly translating into savings.

2. Siemens Actuator: Action and Efficiency

The Siemens actuator is the hydraulic actuator. Its role is to precisely position valves (mixing valves or zone valves) in order to control the flow of hot water to a given circuit.

As the centerpiece of the heating zone, it must be fully compatible with the regulation electronics (0-10V signal, 3 points) and the valve it is mounted on. Replacing a faulty actuator allows for immediate restoration of optimal control over the water mix (supply/return) and avoids unnecessary overheating.

Advice for Identification and Compatibility

With Siemens' extensive and highly technical range, it is vital to check the specifications of the part to be replaced:

  • Product reference: Always rely on the 7 or 8 character code on the label (e.g., RDE10.1). This code determines the function, voltage, and communication protocol.

  • For Actuators: Check the power (torque) and stroke duration (opening/closing time) to ensure it can move your valve.

Expert Tip: When replacing a Siemens thermostat or a Siemens actuator, check the configuration of the dip switches or the initial programming. Incorrect calibration of the zero point or end stroke can lead to malfunctions, even if the part is new.

Ensure the reliability of your regulation system with ExpertByNet, the specialist in Siemens components for HVAC.
