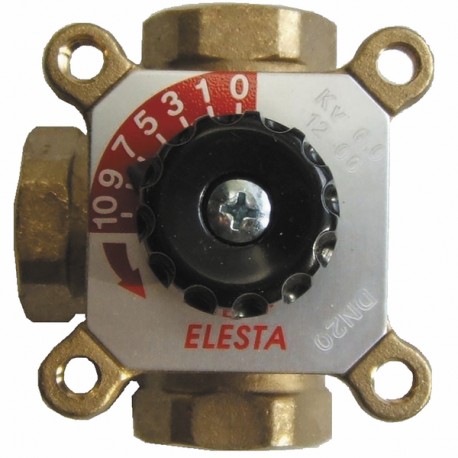

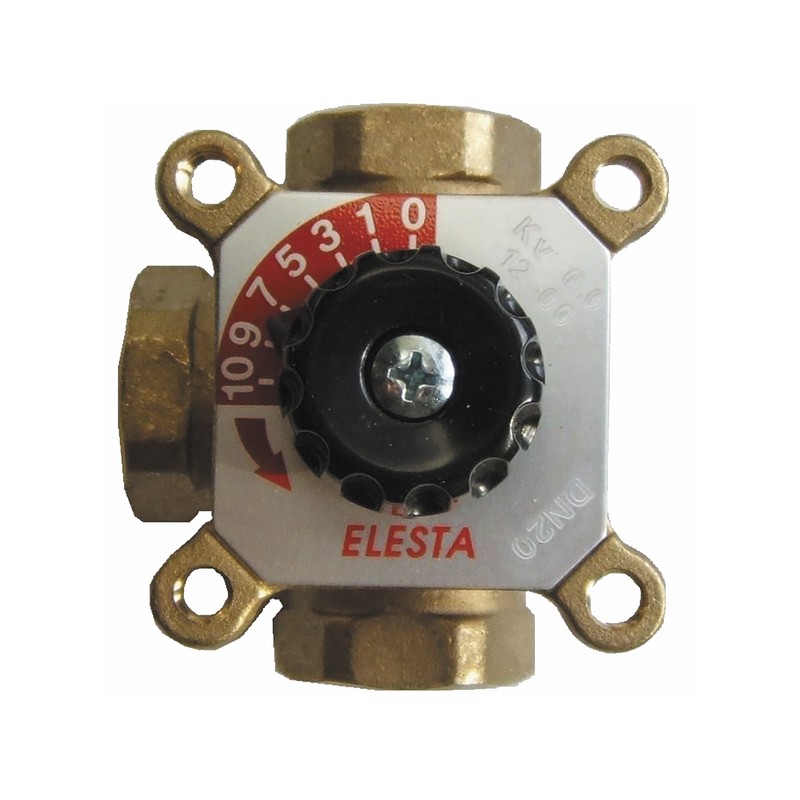

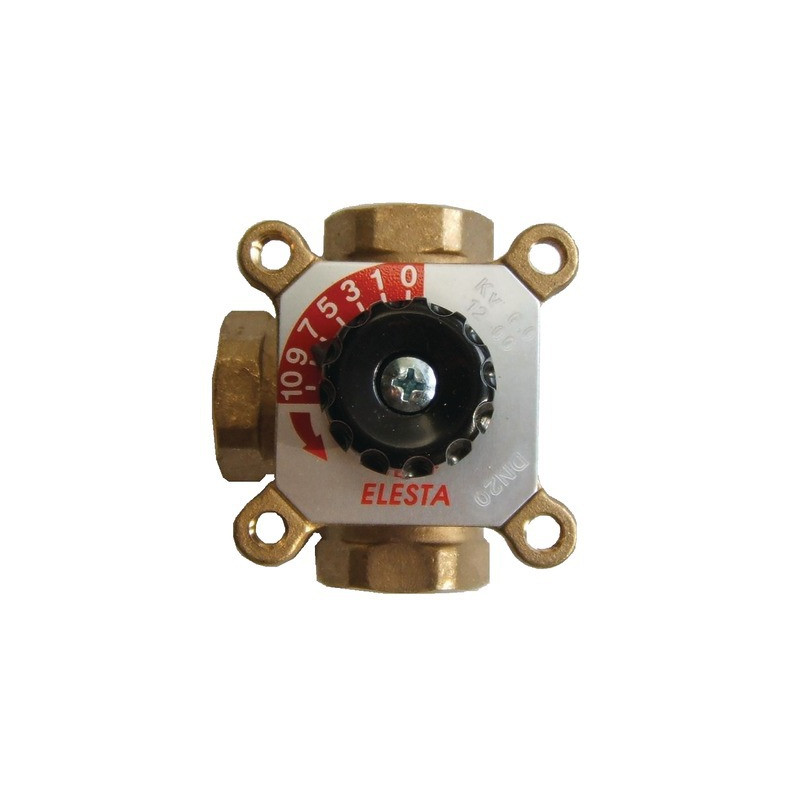

Elesta mixing valve 3 way type h3mg20 ff3/4"- E.R.E REGULATION - H3MG20-4
  • Elesta mixing valve 3 way type h3mg20 ff3/4"- E.R.E REGULATION - H3MG20-4
  • Elesta mixing valve 3 way type h3mg20 ff3/4"- E.R.E REGULATION - H3MG20-4

Elesta mixing valve 3 way type h3mg20 ff3/4"- E.R.E REGULATION - H3MG20-4

109196
€71.98

The mixing valve provides optimal boiler functioning, and the requested room temperature. The mixing valve can be equipped with actuator. TECHNICAL FEATURES Max static pressure : 10 bar (1 MPA) Max temperature : 110°C Mini temperature : -30°C DifferentIal pressure drop : 200 kPa CONSTRUCTION Valve body : bronze Axis : brass Washer : PPO Outside plate : Zinc O-ring : EPDM 3 ways valve, brass type MG controled by motors range 60 25 kW Radiator circuits 10 kW heating floors Ø3/4 " KVS 4 Center distance 80mm x Height 105mm

Quantity

Colissimo Delivery expected from 2026-09-24

Available

Delivery & returns
  • ✓ Free delivery on orders over €79 in France
  • ✓ Free returns within 30 days
Find out more about terms and conditions

Features of product: ELESTA MIXING VALVE 3 WAY TYPE H3MG20 FF3/4"- E.R.E REGULATION - H3MG20-4

Package Weight (kg)
0.784
Package Height (m)
0.09
Package Width (m)
0.095
Package Length (m)
0.11
C
71.5
Ø
F3/4"
DN
20.0
B
34.5
H
40.0
H1
105
Kv (m³/h)
4.00
Logo Marque
ELESTA
Length (mm)
80.00
Number
1
PN (bar)
10
Power (details)
10kW / 25kW
Product type
Vanne
