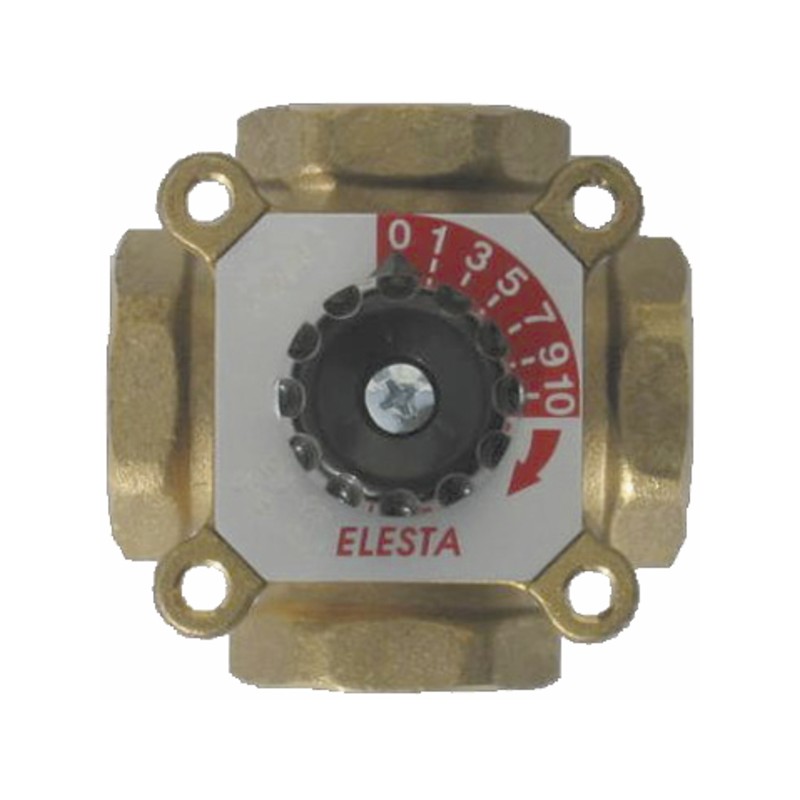

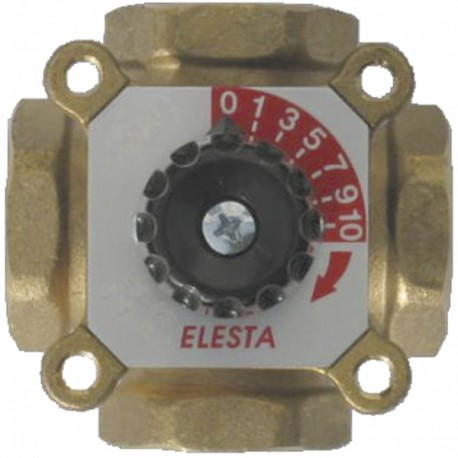

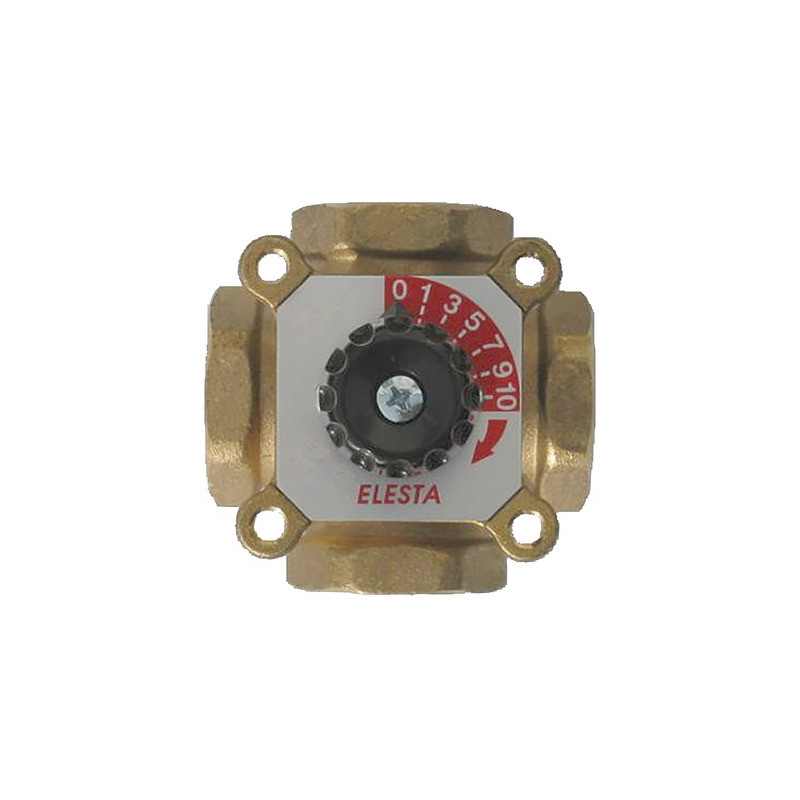

Elesta mixing valve 4 way type h4mg25 ff1"- E.R.E REGULATION - H4MG25-8
  • Elesta mixing valve 4 way type h4mg25 ff1"- E.R.E REGULATION - H4MG25-8
  • Elesta mixing valve 4 way type h4mg25 ff1"- E.R.E REGULATION - H4MG25-8

Elesta mixing valve 4 way type h4mg25 ff1"- E.R.E REGULATION - H4MG25-8

109199
€99.31

FUNCTION, Mixing valves allow for an optimal functioning of the boiler and to obtain the desired room temperature whatever the season and temperature variations. Mixing valves can be motorized and can function with different regulations. TECHNICAL CHARACTERISTICS: Maximum static pressure : 10 bars (1 MPA) Maximum temperature: 110°C. Minimum temperature: -30°C Maximum decline of differential pressure 200 kPa. CONSTRUCTION : Valve body : bronze. Ball axe: brass Washer : PPO Exterior plate: Zinc O-rings : EPDM 4 way valve brass MG type controlled by motors 60 series. POWER : 50 kw radiator circuits. 22 kw heating floors. Diameter : Female 1", Flow : 8 in m3 for loss of charge of 1 bar, Dimensions : Center Distance 82mm, Height 105mm

Quantity

Colissimo Delivery expected from 2026-09-24

Available

Delivery & returns
  • ✓ Free delivery on orders over €79 in France
  • ✓ Free returns within 30 days
Find out more about terms and conditions

Features of product: ELESTA MIXING VALVE 4 WAY TYPE H4MG25 FF1"- E.R.E REGULATION - H4MG25-8

Package Weight (kg)
1.055
Package Height (m)
0.08
Package Width (m)
0.11
Package Length (m)
0.17
C
71.5
Ø
F1"
DN
25.0
B
34.5
H
41.0
H1
105
Kv (m³/h)
8.00
Logo Marque
ELESTA
Length (mm)
82.00
PN (bar)
10
Power (details)
10kW / 25kW
Product type
Vanne
