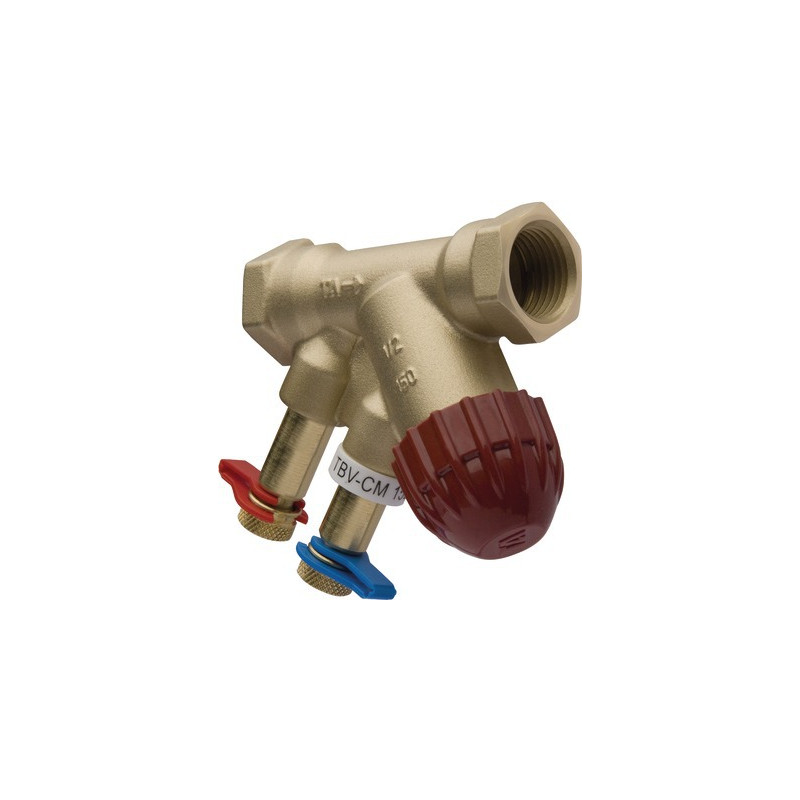

TBV-CM NF normal flow valve 3/4- IMI - 52144-120
  • TBV-CM NF normal flow valve 3/4- IMI - 52144-120
  • TBV-CM NF normal flow valve 3/4- IMI - 52144-120

TBV-CM NF normal flow valve 3/4- IMI - 52144-120

110396
€193.19€48.30

Designed for use in terminal units in heating and cooling systems, the TBV-CM ensures accurate hydronic control and optimum circulation. IMI Hydronic Engineering?s dezincification resistant alloy, AMETAL®, minimises the risk of leakage. Dimensions: DN 15-25 Pressure class: PN 16 Max. working temperature: 120°C Min. working temperature: -20°C

Quantity

Colissimo Delivery expected from 2026-09-25

Available

Delivery & returns
  • ✓ Free delivery on orders over €79 in France
  • ✓ Free returns within 30 days
Find out more about terms and conditions

Features of product: TBV-CM NF NORMAL FLOW VALVE 3/4- IMI - 52144-120

Package Weight (kg)
0.432
Package Height (m)
0.09
Package Width (m)
0.04
Package Length (m)
0.1
Ø
F3/4''
Specifications
F: M30x1,5
Certification
ACS
DN
20.0
H
57.0
Kv (m³/h)
2
Length (mm)
91.00
Product type
Vanne
