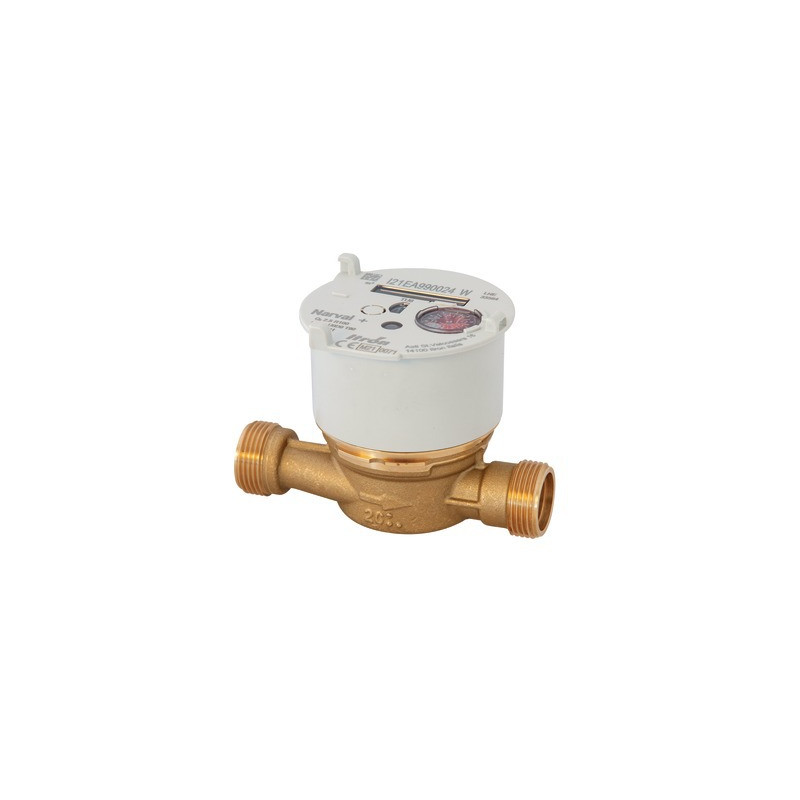

Sub-meter cold water hot water NARVAL0- ITRON - 6UAB15Y110BR100LFCBXN_FR

CEE/ISO sub-meter
Single-jet speed technology
Particularly suitable for confined spaces
Class B horizontal approval and Class A approval for all other positions
Horizontal installation recommended
Extra-dry 360° rotating totaliser
Visual leak detection
Pre-fitted for communication
MID 100 metrological class
Max. temperature 90°C
Calibre 15 mm
Max. flow rate 3.0 m³/h
Min. flow rate 25 l/h
Start-up flow rate: 8 l/h
Ø M3/4"
Centre distance: 110 mm

Safety information:
Use a pressure gauge to check the water pressure in your system regularly. The ideal water pressure for a house is generally between 2 and 4 bar (30 to 60 psi).If the pressure exceeds the recommended levels, consider fitting a pressure-reducing valve.
